Introduction

SCE Image allows you to load and display one or several images, pictures, logos, etc. on your LEDs. And you can add certain animations to them.





Overview



Default Settings

Default Settings

Customized Example

Customized Example





Effect Options

This MADRIX Effects supports Effect Options for advanced workflows.

Learn more »Effect Options





Layer Settings

Various buttons and controls have universal functions. They are available for each MADRIX Effect / Layer.
Learn more »Effect Areas [Deck A / Deck B]
Learn more »Layers

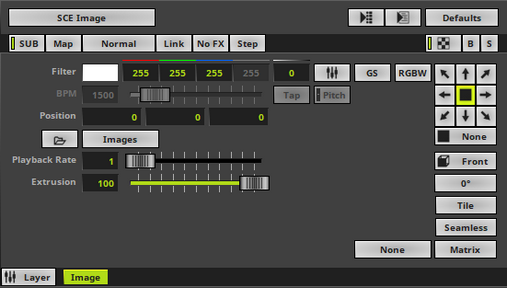

Effect Settings

This MADRIX Effect uses the following, individual controls:

Filter - Applies a multiplicative color filter to the image. The default value is White.
- GS - Activates grayscale mode to show the input only in gray shades. The Filter is independent of this mode.
- RGBW - Converts the input into RGBW. This is useful when using RGBW fixtures to convert from the standard RGB color values of the input. If the option is disabled when using RGBW fixtures, the input will appear darker since the White channel is not used. The W color channel of the Filter only works if RGBW is activated.
Learn more »[Global] Colors And Intensity

BPM - Defines the speed [when using a direction/movement]. The default value is 1500. Valid values range from 0 to 9999.
Learn more »Using BPM Control

Position - Defines the position of the image in X, Y, and Z [in %]. The default values are 0, 0, 0. Valid values range from -1000 to 1000.

Playback Rate - Defines the speed of the Image Table and how fast images are changed. Valid values range from 0 to 50.
- The default value is 1, which means that the Duration of the Image Table for each image is used. A rate of 2 doubles the speed and cuts the Duration in half, for example.

Extrusion - Adds depth to the input; i.e. duplicates the input image [in % of the virtual LED matrix]. This is mainly relevant for 3D. The default value is 100. Valid values range from 0.01 to 100.

Dynam. Range - Defines the dynamic range of the output. Valid values range from 0 to 255.
- The default value range is 0 to 255, which means that all available color values of the input will be displayed.
- Adjusting the left value cuts of lower color values and defines a new black level; therefore eliminating unwanted [gray] noise and achieving a uniform black.
[Setting the left value to 255 will render the input completely black.]
- Lowering the right value highlights the colors; therefore achieving purer color values.
[Setting the right value to 0 will render black/gray values completely white.]



Open - Allows you to load an image into MADRIX 5. Select the file on your computer or another source. Continue with Image Import Settings

Open Image Table - Opens the Image Table, a window to organize multiple images. Learn more Image Table

Filtering - Defines how input is processed and displayed. Mainly affects the visual outcome when the input is scaled up or down [e.g., when choosing a different mode for Stretching / Aspect Ratio]. Choose from 2 different modes. The default setting is None.
- None - Prioritizes processing speed over image quality.
- Linear - Prioritizes image quality over processing speed. This mode may affect performance.

Direction - Allows you to choose the direction. This includes all directions for 2D and 3D mode. The default setting is None. Learn more »Using Directions

Look-At Type - Allows you to choose from which side you want to look at the effect. This is mainly relevant for 3D. The default setting is Front. Learn more »Using Directions

Rotation - Rotates the image [, 90°, 180°, 270°]. The default setting is 0°.

Tile - Tiles and duplicates the input and thereby generating patterns.

Seamless - Activates or deactivates a continuous stream of the input image. MADRIX 5 will automatically display the input image again to create a continuous display.

Stretching / Aspect Ratio - Defines the aspect ratio of the image. The default setting is Matrix.

None - Disables stretching.

Matrix - Stretches to the current aspect ratio of the virtual LED matrix.

Original - Stretches to the original aspect ratio of the source.

4:3 - Applies a 4:3 aspect ratio.

16:9 - Applies a 16:9 aspect ratio.





Restoring The Default Settings

Restore Default Layer Settings - Restores the default settings of the Layer.
- All Layer Settings and Effect Settings will be restored to their default values.
- This does not include the MADRIX Effect selection, the Effect Parameter Chaser [which will be paused], or the Layer Macro [which will be stopped].





Supported File Types

SCE Image supports the following file types:

Bitmap [of the file type *.bmp]

GIF and Animated GIF [of the file type *.gif]

JPG [of the file types *.jpg, *.jpeg, *.jpe, *.jfif]

PNG [of the file type *.png]

TIFF [of the file types *.tif, *.tiff]


MADRIX 5 Image Table [of the file type *.mitz]

MADRIX 5 Image Table Uncompressed [of the file type *.mitx]

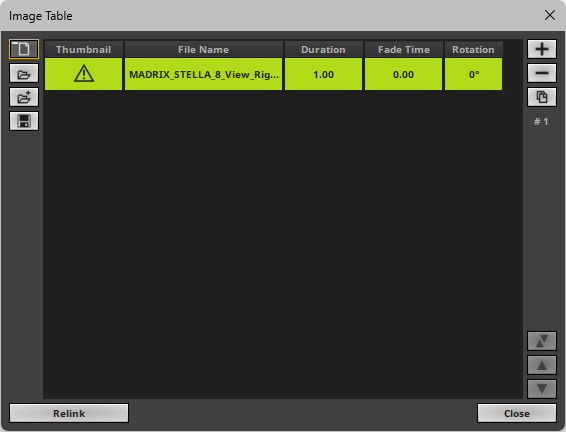

Image Table

Overview

SCE Image allows you to load one image or multiple images at a time. Use the Image Table to manage multiple images as described below.



Left Mouse Click - Selects an image in the Image Table.

Double-Click Left Mouse Button - Immediately chooses and activates the selected image and displays it on the LEDs. In this way, you can define which image to show next. MADRIX 5 will automatically continue in the list then, beginning with this image.

Ctrl + Left Mouse Click - Allows you to select several images in the Image Table at different positions.

Shift + Left Mouse Click - Allows you to select several images by selecting 1] the first image, 2] the last image, 3] and all images in-between will be selected automatically.


Automatic Loop - When the last image of the Image List is shown, MADRIX 5 will automatically loop back to the first image and start from the beginning again.



Thumbnail

Displays a small preview of the loaded or currently selected image.

File Name

Shows the file name of the image.

Duration

Defines how long an image is displayed [in s]. Select one or multiple images to adjust the value.

Fade Time

Defines how long it takes to fade from one image to the next [in s]. Select one or multiple images and then adjust the value.

Rotation

Rotates the image [, 90°, 180°, 270°]. The default setting is 0°.



New - Immediately removes all items from the list.

Open - Loads a previously saved MADRIX 5 Image Table from an external file [of the file type *.mitz or *.mitx].

Open And Attach - Loads a previously saved MADRIX 5 Image Table from an external file [of the file type *.mitz or *.mitx] and adds the new images to the images that are already loaded.

Save - Saves the Image Table to an external file [of the file type *.mitz or *.mitx].



Add Images - Adds and appends one or several images to the Image Table. Choose the files from your harddisk or another storage location. Continue with Image Import Setings

Remove Images - Removes one or several images from the Image Table. First, select the images in the list.

Duplicate Images - Copies the currently selected entries and adds them as new items to the Image Table.

#5

Shows the total number of images in the Image Table. An empty list shows # 0



Swap Position - Swaps the position of images in the Image Table when several images are selected first.

Position Up - Changes the order, and positions currently selected images one step higher up in the list.

Position Down - Changes the order, and positions currently selected images one step lower down in the list.



Close - Closes the Image Table window.



Context Menu

Right Mouse Click - You can call up the context menu by performing a right mouse click on Images

A small window will be shown.



You can quickly perform the following actions:

Edit... - Opens the Image Table [in the same way you can open the window by clicking on Images with the left mouse button].


Open... - Loads images or a previously saved Image Table from an external file [of the file type *.mitz or *.mitx].
A new window opens for you to select the file on your harddisk.



Copy - Copies the current images into the clipboard as a duplicate.

Paste - Applies all images from the clipboard to the currently focused Image Table [Images].


Clear - Removes all images from the Image Table.



Drag And Drop [Copy And Paste]

Left Mouse Click And Hold - You can perform a Copy and Paste with the mouse.
Click with the left mouse button on the Images button and hold for 3 seconds. A small + appears. Now, continue to hold and drag the mouse to another image control [of a different layer] and release the mouse to instantly apply the images.
Use the keyboard button Ctrl in addition to remove the wait time to immediately perform the drag and drop.


File Drag And Drop - You can select a MADRIX 5 Image Table file [of the file type *.mitz or *.mitx] in Windows and drag it to a color control of your choice in MADRIX 5 in order to load it in MADRIX 5.





Image Import Settings

After opening an image or loading it into the Image Table, please use the following options to finally import your images into MADRIX 5. [When importing an image, a copy will be created and used within MADRIX 5. Your original content will not be changed.]



Optimize Size




Optimize Size - When activated, MADRIX 5 automatically optimizes the file size of images loaded into MADRIX 5. If the image has a larger pixel resolution than your virtual LED matrix in MADRIX 5, the software automatically reduces the pixel resolution of the image to fit the virtual LED matrix. Thereby the file size is reduced, which in turn reduces the required space in the local memory of your computer [RAM]. This increases performance and stability of the software and computer. It is recommended to activate Optimize. Learn more Important Notes

Confirm with OK, restore the default settings via Defaults, or abort the process using Cancel



Create Slices For 3D




Create Slices For 3D - Is a way to bring 2D content to 3D LED matrices by slicing the image into different parts and applying each slice to X-levels, Y-levels, or Z-levels as required. [You will get the most benefit out of this feature when using images that are made up of different parts and are especially created for this area of application.]

Example: Your virtual LED matrix is 10 x 8 x 4. Now, you have prepared an image and want to display it not only on the first Z-level or use Extrude, but on all 4 Z-levels. Then, you would let MADRIX 5 create 4 slices.


Slice Type - Defines the 3D orientation of how slices are applied to your LED matrix.
- X-Slices - Uses slices to fill the LED matrix; always starting from left to right.
- Y-Slices - Uses slices to fill the LED matrix; always starting from top to bottom.
- Z-Slices - Uses slices to fill the LED matrix; always starting from front to back.


Slice Order - Defines how your source image is processed.
- Left To Right - MADRIX 5 slices the image starting left.
[The first, left slice will then be applied to the left for X-Slices, to the top for Y-Slices, and to the front for Z-Slices.]
- Right To Left - MADRIX 5 slices the image starting right.
[The first, right slice will then be applied to the left for X-Slices, to the top for Y-Slices, and to the front for Z-Slices.]
- Top To Bottom - MADRIX 5 slices the image starting top.
[The first, top slice will then be applied to the left for X-Slices, to the top for Y-Slices, and to the front for Z-Slices.]
- Bottom To Top - MADRIX 5 slices the image starting bottom.
[The first, bottom slice will then be applied to the left for X-Slices, to the top for Y-Slices, and to the front for Z-Slices.]


Slice Count - Defines in how many slices an image is divided. A value of 1 means that no slices are created and that the image is used as one. [A value of 4, for example, will create 4 slices that each make up 25% of the source image.]



The settings with the highest performance are Z-Slices and Top To Bottom


Confirm with OK, restore the default settings via Defaults, or abort the process using Cancel



Original 2D Image

Image Import Settings

MADRIX 5 3D Output

Z-Slices - Left To Right

Y-Slices - Left To Right

X-Slices - Left To Right

Z-Slices - Right To Left

Z-Slices - Top To Bottom

Z-Slices - Bottom To Top





Using Images In Your MADRIX 5 Setup [Referenced Files]

When you load images into MADRIX 5, the software will reference these files on your harddisk/storage system.

MADRIX 5 will not save or store the images in your MADRIX 5 Setup File!

In order to access the files, MADRIX 5 reads the images from the storage system when needed by using the original folder location [the directory the images were located at the time when they were loaded into the software].

In order to play the Setup File on a different computer, you will need to copy your images, too. Make sure that they are placed in the same folder location!





Loading A MADRIX 3 Setup File

Please see the following chapter to learn more about using images when loading a MADRIX 3 Setup File: »Update From MADRIX 2 Or 3 To MADRIX 5





Important Notes

Please do use pictures with a pixel resolution according to the size of your LED matrix!

It is not useful to use a resolution of 3000x2000 pixels if your LED matrix has a size of 192x128, for example. Please resize your pictures before using them in MADRIX 5. Please do also use 72 DPI. Both means will improve performance considerably. At the same time, you will avoid that the RAM of your computer will overload.

Optimize Size - When activated, MADRIX 5 automatically optimizes the file size of images loaded into MADRIX 5. If the image has a larger pixel resolution than your virtual LED matrix in MADRIX 5, the software automatically reduces the pixel resolution of the image to fit the virtual LED matrix. Thereby the file size is reduced, which in turn reduces the required space in the local memory of your computer [RAM]. This increases performance and stability of the software and computer.



MADRIX 5.7.
