Introduction

TRI Tubes displays various kinds of tubes when triggered by you.

The lowest input triggers a tube to the far left by default. The highest input triggers a tube to the far right by default. In-between triggers are assigned to in-between positions.



Overview



Default Settings

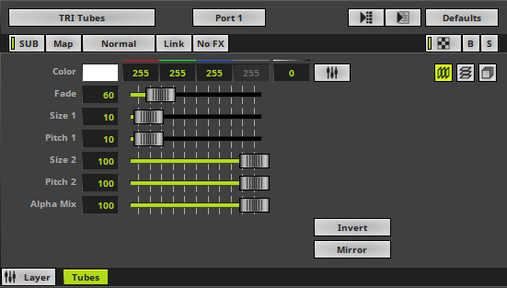

Default Settings

Customized Example

Customized Example





Port Settings

Port - Selects the Trigger Port [1 - 8].
- Make sure to select the correct port first.
- This setting should correspond to the settings you have made in the Device Manager. Learn more »Configuration Of TRI





Layer Settings

Various buttons and controls have universal functions. They are available for each MADRIX Effect / Layer.
Learn more »Effect Areas [Deck A / Deck B]
Learn more »Layers





Effect Settings

This MADRIX Effect uses the following, individual controls:

Colors - Opens the Color Table to specify the colors. The default color is White.
Learn more »Using Colors And Intensity
BPM - Defines the speed. The default value is 1200. Valid values range from 0 to 9999.
Learn more »Using BPM Control
Fade - Defines how fast MADRIX displays the effect [in %]. The default value is 60. Valid values range from 1 to 3000.
Size 1 - Defines the first size of tubes depending on the direction [in % of the Matrix Size]. The default value is 10. Valid values range from 0.01 to 100.
Pitch 1 - Defines the first distance between tubes depending on the direction [in % of the Matrix Size]. The default value is 10. Valid values range from 0.01 to 100.
Size 2 - Defines the second size of tubes depending on the direction [in % of the Matrix Size]. The default value is 100. Valid values range from 0.01 to 100.
Pitch 2 - Defines the first distance between objects depending on the direction [in % of the Matrix Size]. The default value is 100. Valid values range from 0.01 to 100.
Alpha Mix - Defines the upper limit of how much alpha is added to each object. Alpha Mix will be visible when using additional Layers. The default value is 100. Valid values range from 0 to 100.



Invert - Inverts the position of objects.

Mirror - Mirrors objects by creating duplicates on the opposite position.

Vertical Mode - Activates or deactivates the use of vertical objects. All 3 modes can be used at the same time. It is activated by default.

Horizontal Mode - Activates or deactivates the use of horizontal objects. All 3 modes can be used at the same time.

Depth Mode - Activates or deactivates the use of objects in the depth. All 3 modes can be used at the same time.





Restoring The Default Settings

Restore Default Layer Settings - Restores the default settings of the Layer.
- All Layer Settings and Effect Settings will be restored to their default values.
- This does not include the MADRIX Effect selection, the Effect Parameter Chaser [which will be paused], or the Layer Macro [which will be stopped].
