MADRIX Effects > [TRI] Trigger Effects

This topic includes:

Introduction

TRI Shapes creates various objects at random positions when triggered by you.

The lowest input triggers a shape to the far left by default. The highest input triggers a shape to the far right by default. In-between triggers are assigned to in-between positions.

Overview

		Default Settings
		Customized Example

Effect Options

▪This MADRIX Effects supports Effect Options for advanced workflows.

Learn more »Effect Options

Port Settings

Port - Selects the Trigger Port [1 - 64].
- Make sure to select the correct port first.
- This setting should correspond to the settings you have made in the Device Manager. Learn more »Configuration Of TRI

Layer Settings

▪Various buttons and controls have universal functions. They are available for each MADRIX 5 Effect / Layer.
Learn more »Effect Areas [Deck A / Deck B]
Learn more »Layers

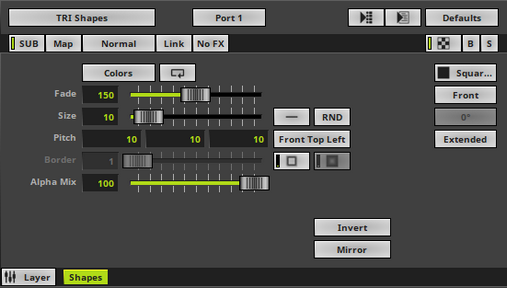

Effect Settings

This MADRIX 5 Effect uses the following, individual controls:

▪Colors - Opens the Color Table to specify the colors. The default color is White.
Learn more »[Global] Colors And Intensity

▪Fade - Defines how fast objects disappear. The default value is 150. Valid values range from 1 to 3000.

▪Size - Defines the size of the objects [in % of the Matrix Size, depending on the Shape Alignment]. The default value is 10. Valid values range from 0.01 to 1000.

▪Pitch - Defines the distance between objects for all 3 axes [in % of the Matrix Size]. The default values are 10, 10, 10. Valid values range from 0.01 to 100.

▪Border - Defines the size of an object's border [in % of the shape size]. The default value is 1. Valid values range from 0.01 to 100.

▪Alpha Mix - Defines the upper limit of how much alpha is added to each object [in %]. Alpha Mix will be visible when using additional Layers. The default value is 100. Valid values range from 0 to 100.

	Distribution - Allows you to choose a certain Distribution Mode for the specific parameter. Often, you can then define a minimum value and a maximum value. Uniform - Each object has the same size. Random - Sizes will be generated randomly. RND - Generates random object sizes each time. This automatically activates Random Distribution Mode.
	Position Origin Type - Defines the point of origin of Shapes [and hence their relative position].
	Outer Glow / Inner Glow - Is only available for specific Shapes. Defines the outer shimmer or inner gleam of objects. The default settings are 0.00. Valid values range from 0.01 to 100.
	Invert - Inverts the position of objects.
	Mirror - Mirrors objects by creating duplicates on the opposite position.
	Shape - Allows you to choose a specific shape for objects. A certain Size is required before a shape becomes visible. The default setting is Square Filled.
	Shape Alignment - Allows you to choose to which side objects are aligned to. This is mainly relevant for 3D. The default setting is Front.
	Shape Rotation Type - Is only available for specific Shapes. Defines the angle in which objects are rotated [0°, 90°, 180°, 270°, Random]. The default setting is 0°.
	Rendering Mode - Defines how objects are rendered. Each mode may enable additional settings [such as additional Shapes]. Choose from 2 different modes. The default setting is Extended. - Simple - Prioritizes processing speed over rendering possibilities. - Extended - Prioritizes rendering possibilities over over processing speed. This mode may require more performance.

Restoring The Default Settings

Restore Default Layer Settings - Restores the default settings of the Layer.
- All Layer Settings and Effect Settings will be restored to their default values.
- This does not include the MADRIX 5 Effect selection, the Effect Parameter Chaser [which will be paused], or the Layer Macro [which will be stopped].

MADRIX 5.7.
