Introduction

SCE Water displays the rising waves as droplets drop into water when triggered by you.

The lowest input triggers an object to the far left by default. The highest input triggers an object to the far right by default. In-between triggers are assigned to in-between positions.



Overview



Default Settings

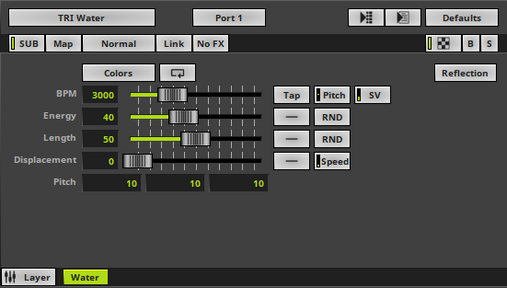

Default Settings

Customized Example

Customized Example





Effect Options

This MADRIX Effects supports Effect Options for advanced workflows.

Learn more »Effect Options





Port Settings

Port - Selects the Trigger Port [1 - 64].
- Make sure to select the correct port first.
- This setting should correspond to the settings you have made in the Device Manager. Learn more »Configuration Of TRI





Layer Settings

Various buttons and controls have universal functions. They are available for each MADRIX 5 Effect / Layer.
Learn more »Effect Areas [Deck A / Deck B]
Learn more »Layers





Effect Settings

This MADRIX 5 Effect uses the following, individual controls:

Colors - Opens the Color Table to specify the colors. The default color is White.
Learn more »[Global] Colors And Intensity

BPM - Defines the speed. The default value is 3000. Valid values range from 0 to 9999.
Learn more »Using BPM Control

Energy - Defines how strong the resulting waves are [in %]. The default value is 40. Valid values range from 1 to 20.

Length - Defines the size the waves [in % of the Matrix Size]. The default value is 50. Valid values range from 1 to 200.

Displacement - Defines the amount of distortion. The default value is 0. Valid values range from 0 to 100.

Pitch - Defines the distance between objects for all 3 axes. The default values are 10, 10, 10. Valid values range from 0.01 to 100.





Distribution - Allows you to choose a certain Distribution Mode for the specific parameter. Often, you can then define a minimum value and a maximum value.

Uniform - Each object has the same size.
Random - Sizes will be generated randomly.

RND - Generates random object sizes each time. This automatically activates Random Distribution Mode.

Displacement Distribution - Is only available for Displacement. Is applied in dependence of the direction that is chosen. Allows you to choose the area the distortion is applied to [Uniform, Linear Increasing, Linear Decreasing, Triangle]. The default setting is Uniform.

Displacement Speed - Is only available for Displacement. Allows you to choose to speed in which the distortion affects the visuals. The default setting is 10.0.

Reflection - Lets waves rebound off the four edges.





Restoring The Default Settings

Restore Default Layer Settings - Restores the default settings of the Layer.
- All Layer Settings and Effect Settings will be restored to their default values.
- This does not include the MADRIX 5 Effect selection, the Effect Parameter Chaser [which will be paused], or the Layer Macro [which will be stopped].



MADRIX 5.7.
