S2L Level Color Scroll

  Previous  Next




S2L Color Scroll displays moving colors based on incoming audio.





Default Settings

Default Settings

Customized Example

Customized Example



Effect Options

This MADRIX Effects supports Effect Options for advanced workflows.

Learn more »Effect Options



Layer Settings

Various buttons and controls have universal functions. They are available for each MADRIX 5 Effect / Layer.
Learn more »Effect Areas [Deck A / Deck B]
Learn more »Layers



Effect Settings

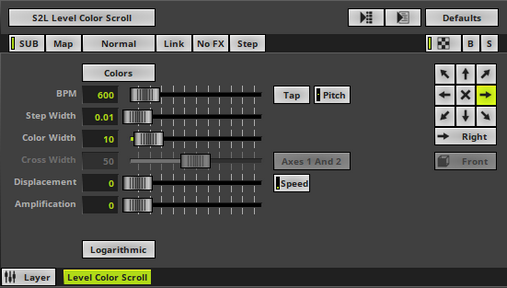

This MADRIX 5 Effect uses the following, individual controls:

Colors - Opens the Color Table to specify the colors. The default colors are White, Black.
Learn more »[Global] Colors And Intensity

BPM - Defines the speed. The default value is 600. Valid values range from 0 to 9999.
Learn more »Using BPM Control

Step Width - Defines the number of pixels the effect should scroll in the direction per frame [in %]. The default value is 0.01. Valid values range from 0.01 to 100.

Color Width - Defines the width of a single color [in %]. The default value is 10. Valid values range from 0.01 to 100.

Cross Width - Is only available for Cross Mode [»Using Directions]. Defines the size of crossing colors [in %]. The default value is 50. Valid values range from 0.01 to 100.

Displacement - Defines the amount of distortion. The default value is 0. Valid values range from 0 to 100.

Amplification - Amplifies the audio input and as a result increases the visual intensity [in %]. The default value is 0. Valid values range from 0 to 100.


Cross Mode Axes- Is only available for Cross Mode. Allows you to choose to which axis Cross Mode applies [Axes 1 And 2, Axis 1, or Axis 2]. The default setting is Axes 1 And 2.

Displacement Speed - Is only available for Displacement. Allows you to choose to speed in which the distortion affects the visuals. The default setting is 10.0.

Logarithmic - Displays the effect in a logarithmic way.

Direction/Mode - Allows you to choose the direction of the movement, including Cross Mode. This includes all directions for 2D and 3D mode. This heavily influences the visual outcome of the effect. The default setting is Right. Learn more »Using Directions

Look-At Type - Allows you to choose from which side you want to look at the effect. This is mainly relevant for 3D. The default setting is Front. Learn more »Using Directions



Restoring The Default Settings

Restore Default Layer Settings - Restores the default settings of the Layer.
- All Layer Settings and Effect Settings will be restored to their default values.
- This does not include the MADRIX 5 Effect selection, the Effect Parameter Chaser [which will be paused], or the Layer Macro [which will be stopped].
