S2L Level Meter

  Previous  Next





Introduction

S2L Level Meter displays the audio input level. By default, the left audio channel and the right audio channel are shown.





Overview



Default Settings

Default Settings

Customized Example

Customized Example





Layer Settings

Various buttons and controls have universal functions. They are available for each MADRIX 5 Effect / Layer.
Learn more »Effect Areas [Deck A / Deck B]
Learn more »Layers





Effect Settings

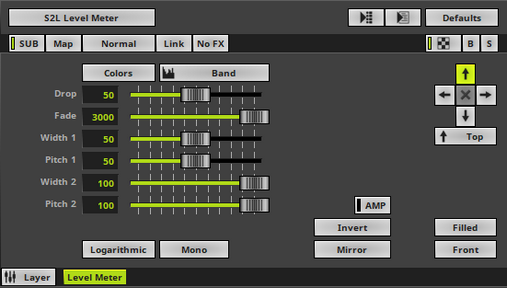

This MADRIX 5 Effect uses the following, individual controls:

Color - Opens the Color Gradient to specify the colors. The default color is White, Black.
Learn more »[Global] Colors And Intensity

Drop - Defines how quickly the effect is shown. The default value is 50. Valid values range from 1 to 100.

Fade - Defines how fast MADRIX 5 displays the effect. The default value is 3000. Valid values range from 1 to 3000.

Width 1 - Defines the first size of spectrum bars depending on the direction [in % of the Matrix Size]. The default value is 50. Valid values range from 0.01 to 100.

Pitch 1 - Defines the first distance between objects depending on the direction [in % of the Matrix Size]. The default value is 50. Valid values range from 0.01 to 100.

Width 2 - Defines the second size of spectrum bars depending on the direction [in % of the Matrix Size]. The default value is 100. Valid values range from 0.01 to 100.

Pitch 2 - Defines the first distance between objects depending on the direction [in % of the Matrix Size]. The default value is 100. Valid values range from 0.01 to 100.



View Logarithmic - Displays the effect in a logarithmic way.

Mono - Deactivates Stereo and only uses 1 audio channel.

Amplification - Amplifies the audio input and as a result increases the visual intensity [in %]. The default setting is 0. Valid values range from 0 to 100.

Invert - Inverts the position of objects.

Mirror - Mirrors objects by creating duplicates on the opposite position.

Direction/Mode - Allows you to choose the direction, including Cross Mode. This includes all directions for 2D and 3D mode. This heavily influences the visual outcome of the effect. The default setting is Top. Learn more »Using Directions

Shape - Allows you to choose a specific shape for objects. The default setting is Filled.

Shape Alignment - Allows you to choose to which side objects are aligned to. This is mainly relevant for 3D. The default setting is Front.





Restoring The Default Settings

Restore Default Layer Settings - Restores the default settings of the Layer.
- All Layer Settings and Effect Settings will be restored to their default values.
- This does not include the MADRIX 5 Effect selection, the Effect Parameter Chaser [which will be paused], or the Layer Macro [which will be stopped].
