S2L Level Color

This topic includes:

▪Introduction

▪Overview

▪Layer Settings

▪Effect Settings

▪Restoring The Default Settings

Introduction

S2L Level Color displays the loudness of the audio input with the help of color. The louder the input, the brighter the effect.

Overview

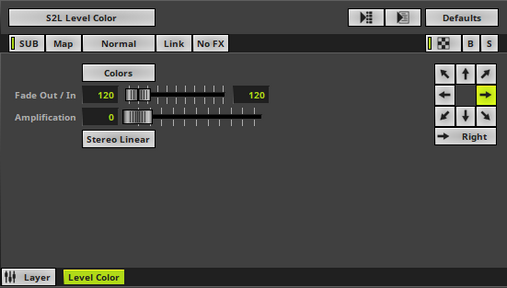

		Default Settings
		Customized Example

Layer Settings

▪Various buttons and controls have universal functions. They are available for each MADRIX 5 Effect / Layer.
Learn more »Effect Areas [Deck A / Deck B]
Learn more »Layers

Effect Settings

This MADRIX 5 Effect uses the following, individual controls:

▪Colors - Opens the Color Gradient to specify the colors. The default color is White, Black.
Learn more »[Global] Colors And Intensity

▪Fade Out / In - Defines how fast MADRIX 5 displays color. You can specify the fade-in speed as well as the fade-out speed. The default values are 120 and 120. Valid values range from 1 to 3000.

▪Amplification - Amplifies the audio input and as a result increases the visual intensity [in %]. The default value is 0. Valid values range from 0 to 100.

Restoring The Default Settings
