TRI Color Change

<< Click To Display Table Of Contents >>

You Are Here:  MADRIX Effects > [TRI] Trigger Effects >

TRI Color Change

This topic includes:

▪Introduction

▪Overview

▪Effect Options

▪Port Settings

▪Layer Settings

▪Effect Settings

▪Restoring The Default Settings





Introduction

TRI Color Change automatically changes colors when triggered by you.

The lowest input triggers the first color in the Color Table. The highest input triggers the last color in the Color Table. In-between trigger inputs are assigned to the in-between colors of the Color Table.





Overview

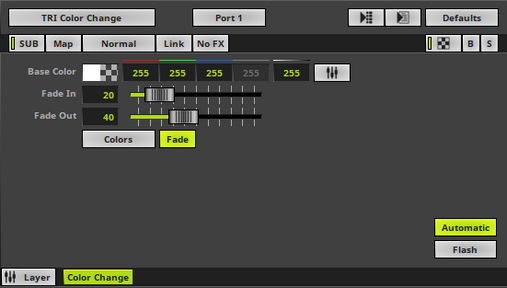

Default Settings

Default Settings
Customized Example

Customized Example





Effect Options

▪This MADRIX Effects supports Effect Options for advanced workflows.

Learn more »Effect Options





Port Settings

Port - Selects the Trigger Port [1 - 64].
- Make sure to select the correct port first.
- This setting should correspond to the settings you have made in the Device Manager. Learn more »Configuration Of TRI





Layer Settings

▪Various buttons and controls have universal functions. They are available for each MADRIX 5 Effect / Layer.
Learn more »Effect Areas [Deck A / Deck B]
Learn more »Layers





Effect Settings

This MADRIX 5 Effect uses the following, individual controls:

▪Base Color - Is only available when using the mode Flash. Defines the standard color that is shown. The default color is White with Alpha.
Learn more »[Global] Colors And Intensity

▪Fade In - Defines how long a color needs to be fully visible [in s]. The default value is 20. Valid values range from 1 to 100.

▪Fade Out - Defines how long a color needs to disappear again [in s]. The default value is 40. Valid values range from 1 to 100.



Colors - Opens the Color Table to specify the colors. The default colors are Red, Yellow, Green, Cyan, Blue, Magenta.
Learn more »[Global] Colors And Intensity

Fade - Creates a smooth transition between colors of the Color Table. It is activated by default.

Automatic - Automatically sustains the trigger port input even if you may already released the control/button in order to fully execute the fade. It is activated by default. If deactivated, the fade will be executed as long as the effect is triggered by pressing the control/button.

Trigger Mode - Selects the trigger mode.
- Flash - Lets colors appear when triggered.
- Latch - Changes colors when triggered, but always shows the last color.





Restoring The Default Settings

Restore Default Layer Settings - Restores the default settings of the Layer.
- All Layer Settings and Effect Settings will be restored to their default values.
- This does not include the MADRIX 5 Effect selection, the Effect Parameter Chaser [which will be paused], or the Layer Macro [which will be stopped].



MADRIX 5.7.
