Introduction

SCE Water displays the rising waves when droplets drop into water.





Overview

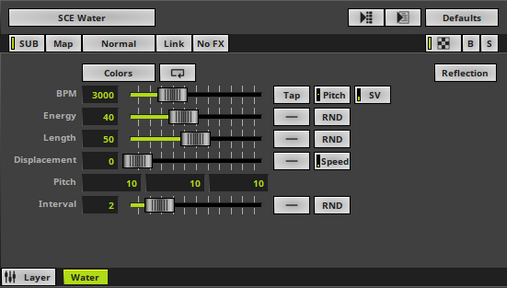

Default Settings

Default Settings

Customized Example

Customized Example





Layer Settings

Various buttons and controls have universal functions. They are available for each MADRIX Effect / Layer.
Learn more »Effect Areas [Deck A / Deck B]
Learn more »Layers





Effect Settings

This MADRIX Effect uses the following, individual controls:

Colors - Opens the Color Table to specify the colors. The default color is White.
Learn more »Using Colors And Intensity
BPM - Defines the speed. The default value is 3000. Valid values range from 0 to 9999.
Learn more »Using BPM Control
Energy - Defines how strong the resulting waves are [in %]. The default value is 40. Valid values range from 1 to 20.
Length - Defines the size the waves [in % of the Matrix Size]. The default value is 50. Valid values range from 1 to 200.
Displacement - Defines the amount of distortion. The default value is 0. Valid values range from 0 to 100.
Pitch - Defines the distance between objects for all 3 axes. The default values are 10, 10, 10. Valid values range from 0.01 to 100.
Interval - Defines the time between droplets [in s]. The default value is 2. Valid values range from 0.01 to 60.





Distribution - Allows you to choose a certain Distribution Mode for the specific parameter. Often, you can then define a minimum value and a maximum value.

Uniform - Each object has the same size.
Random - Sizes will be generated randomly.

RND - Generates random object sizes each time. This automatically activates Random Distribution Mode.

Displacement Distribution - Is only available for Displacement. Is applied in dependence of the direction that is chosen. Allows you to choose the area the distortion is applied to [Uniform, Linear Increasing, Linear Decreasing, Triangle]. The default setting is Uniform.

Displacement Speed - Is only available for Displacement. Allows you to choose to speed in which the distortion affects the visuals. The default setting is 10.0.

Reflection - Lets waves rebound off the four edges.





Restoring The Default Settings

Restore Default Layer Settings - Restores the default settings of the Layer.
- All Layer Settings and Effect Settings will be restored to their default values.
- This does not include the MADRIX Effect selection, the Effect Parameter Chaser [which will be paused], or the Layer Macro [which will be stopped].
