Introduction
Overview
Layer Settings
Effect Settings
Restoring The Default Settings
Context Menu





Introduction

SCE Fire is one of two fire effects.





Overview



Default Settings

Default Settings

Customized Example

Customized Example





Layer Settings

Various buttons and controls have universal functions. They are available for each MADRIX Effect / Layer.
Learn more »Effect Areas [Deck A / Deck B]
Learn more »Layers

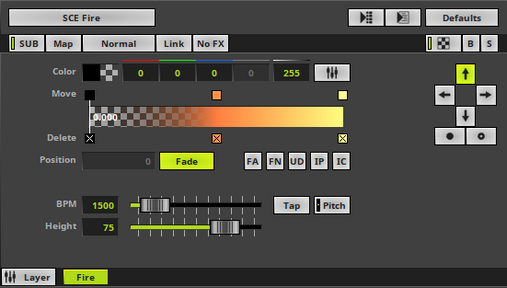

Effect Settings

This MADRIX Effect uses the following, individual controls:

Color - Defines the color via a Color Gradient and various options.
Learn more »Using Colors And Intensity
BPM - Defines the speed. The default value is 1500. Valid values range from 0 to 9999.
Learn more »Using BPM Control
Height - Defines the height of the flames [in %]. The default value is 75. Valid values range from 1 to 1000.



Direction - Allows you to choose the direction of the movement. The default setting is Up. Learn more »Using Directions

Direction - Allows you to choose the direction of the movement [To The Front or To The Back]. This is mainly relevant for 3D. The default setting is Up. Learn more »Using Directions





Restoring The Default Settings

Restore Default Layer Settings - Restores the default settings of the Layer.
- All Layer Settings and Effect Settings will be restored to their default values.
- This does not include the MADRIX Effect selection, the Effect Parameter Chaser [which will be paused], or the Layer Macro [which will be stopped].





Context Menu

A context menu allows you to quickly make changes to the colors.

Right Mouse Click - Click with your right mouse button on the color gradient to call up the context menu.

Open... - Loads a previously saved Color Table file from an external file [of the file type *.mctx].
Save... - Saves the current colors as a Color Table file [of the file type *.mctx].

Copy - Copies the current colors into the clipboard as a duplicate.
Paste - Applies all colors from the clipboard to the currently focused color control [Colors, M2L Colors].

Defaults - Restores all default gradient colors.
