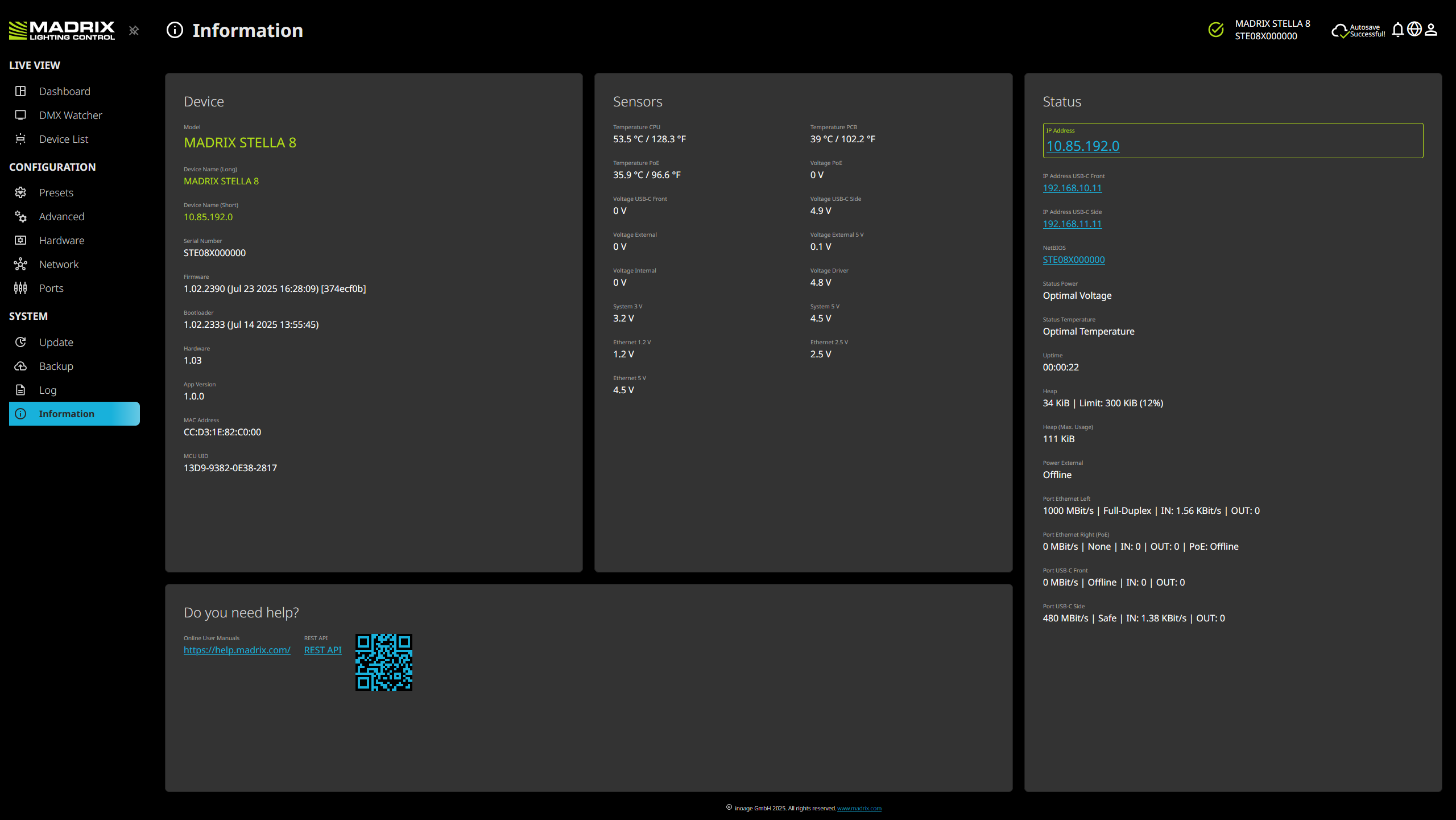

Model

Shows the device type: MADRIX STELLA 8.

Device Name (Long)

Shows the Art-Net Long Name; as set under menu »Hardware

Device Name (Short)

Shows the Art-Net Short Name; as set under menu »Hardware

Serial Number

Shows the unique production identifier.

Firmware

Shows the current firmware version, i.e. the customized software that runs on the controller.

Bootloader

Shows the current bootloader version, i.e. underlying software system that runs on the controller.

Hardware

Shows the hardware revision.

App Version

Shows the version number of the web panel.

MAC Address

Shows a permanent, unique address of the controller for network communication.

MCU UID

Shows a permanent, unique identifier of the controller for its hardware components.

Temperature CPU

Shows the current temperature of the main processor [in °C and ° F].

Temperature PCB

Shows the current temperature of the electrical circuit board [in °C and ° F].

Temperature PoE

Shows the current temperature of components regarding Power over Ethernet [in °C and ° F].

Voltage PoE

Shows the voltage currently provided by Power over Ethernet [in V].

Voltage USB-C Front

Shows the voltage currently provided by USB-C Front [in V].

Voltage USB-C Side

Shows the voltage currently provided by USB-C Side [in V].

Voltage External

Shows the voltage currently provided when connecting through a Power port [in V].

Voltage External 5 V

Shows the 5-V-voltage-marker currently provided when connecting through a Power port [in V].

Voltage Internal

Shows an internal-voltage marker [in V].

Voltage Driver

Shows an internal-voltage marker [in V].

System 3 V

Shows the 3-V-systems-voltage marker [in V].

System 5 V

Shows the 5-V-systems-voltage marker [in V].

Ethernet 1.2 V

Shows the 1.2-V-Ethernet-voltage marker [in V].

Ethernet 2.5 V

Shows the 2.5-V-Ethernet-voltage marker [in V].

Ethernet 5 V

Shows the 5-V-Ethernet-voltage marker [in V].

IP Address

Shows the current IP address regarding Ethernet network.
Can be used as a click-able link to call the controller with this IP address in the web browser.
Is shown with a green outline if currently used to access the web panel.

IP Address USB-C Front

Shows the fixed IP address of USB-C Front.
Can be used as a click-able link to call the controller with this IP address in the web browser.
Is shown with a green outline if currently used to access the web panel.

IP Address USB-C Side

Shows the fixed IP address of USB-C Side.
Can be used as a click-able link to call the controller with this IP address in the web browser.
Is shown with a green outline if currently used to access the web panel.

NetBIOS

Is an alternate way to call up the web panel or find the controller in the network, and without using the IP address.
Can also be used as a click-able link to call the controller with its NetBIOS name.

[Main workflow: Assuming correct network settings, simply type http://SERIALNUMBER/ into your web browser, such as http://STE08X000001/ ; often merely STE08X000001/ should work. If you want to ping the device, use only STE08X000001]

Status Power

Shows the status of the supply of power for the controller [Optimal Voltage, Voltage Too Low, Voltage Too High].

Status Temperature

Shows the status of the ambient temperature for the controller [Optimal Temperature, Temperature Too Low, Temperature Too High].

Uptime

Shows the time that has passed since the last power-cycle or restart.

Heap

Shows an internal indicator of memory load [Current | Limit (Percentage)] [in KiB].

Heap (Max. Usage)

Shows the most heap that has been used so far [in KiB].

Power External

Shows the status of the power connection [Offline [Not Connected], Safe [Successfully Connected], Collapsed [Not Connected Anymore], Insufficient [Connected But Not Enough Power], Voltage Too High [Overvoltage]].

Port Ethernet Left

Shows details about the Ethernet Left port, including connection speed [in MBit/s], status [Full-Duplex, Half-Duplex, None Connection], incoming data rate [IN], and outgoing data rate [OUT].

Port Ethernet Right (PoE)

Shows details about the Ethernet Left port, including connection speed [in MBit/s], status [Full-Duplex, Half-Duplex, None Connection], incoming data rate [IN], and outgoing data rate [OUT], Voltage Too High [Overvoltage].

Port USB-C Front

Shows details about the USB-C Front port, including connection speed [in MBit/s], status [Offline [Not Connected], Safe [Successfully Connected], Collapsed [Not Connected Anymore], Insufficient [Connected But Not Enough Power], Voltage Too High [Overvoltage]], incoming data rate [IN], and outgoing data rate [OUT].

Port USB-C Side

Shows details about the USB-C Side port, including connection speed [in MBit/s], status [Offline [Not Connected], Safe [Successfully Connected], Collapsed [Not Connected Anymore], Insufficient [Connected But Not Enough Power], Voltage Too High [Overvoltage]], incoming data rate [IN], and outgoing data rate [OUT].

Online User Manuals

Provides a click-able link to the online help website of MADRIX for user manuals and guides: »help.madrix.com

REST API

Provides a click-able link to the offline help website of functions and commands used by the web panel to communicate with the firmware of the device.

QR Code

Provides a scan-able link to the online help website of MADRIX for user manuals and guides: »help.madrix.com
