Log



Overview





Log

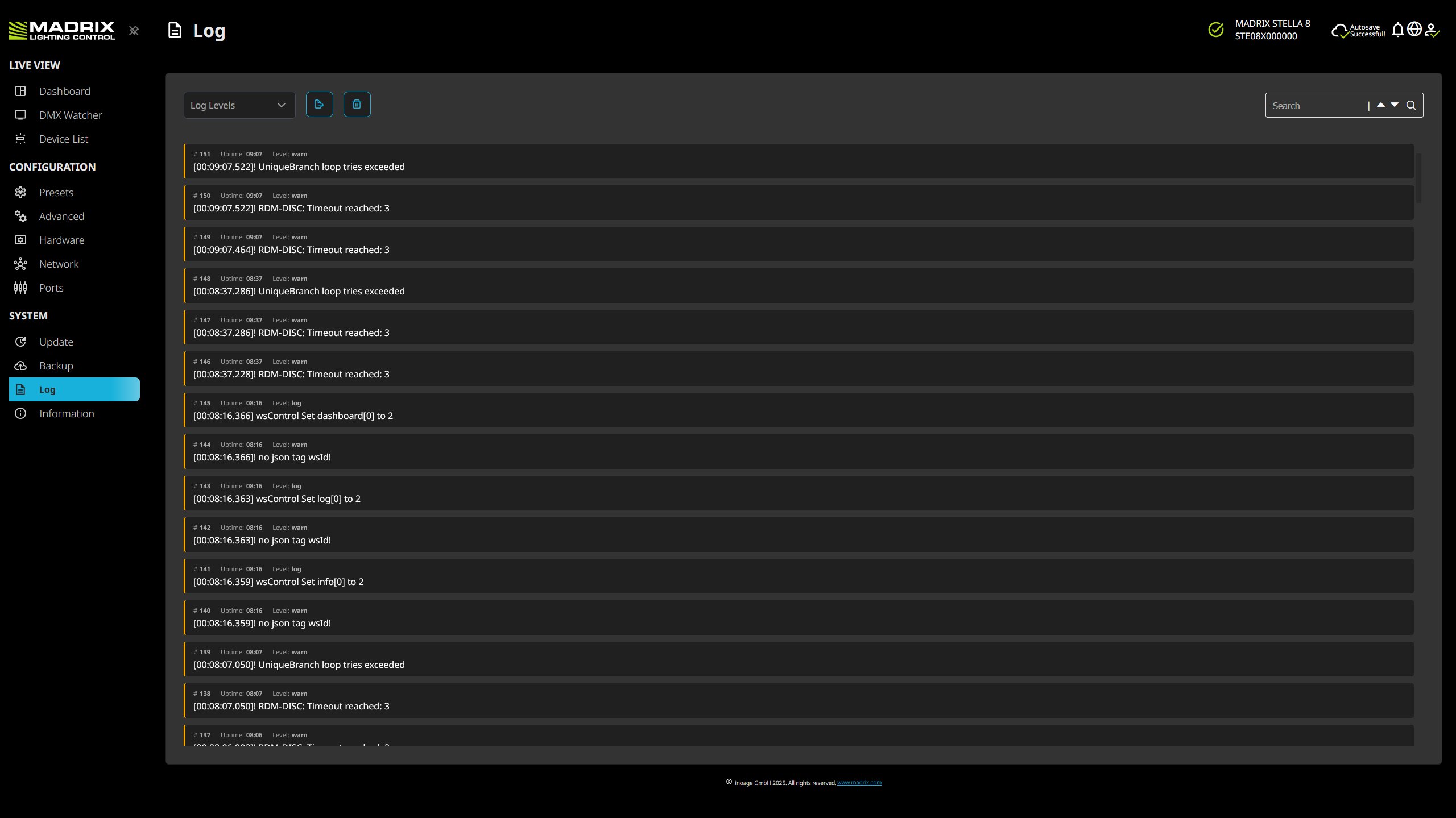

The Log keeps track of all warnings and system information. New entries will be added at the top.

The Logfile might be requested by the MADRIX support team in case of support inquiries.



Log Levels

Defines which kind of information is shown and allows you to filter for:

All


Information

Warning

Error

Clear any filters via X



Download Logfile - Allows you to download the log as a separate file [in *.json format, named Stella8Logfile.json].

All entries logged up to this point will be included.

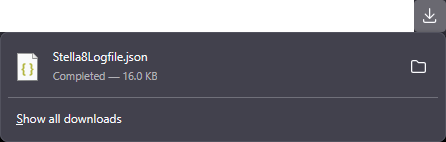

The download manager of your web browser should automatically take over and manage the download, including its stored location.

Delete All - Removes all current entries from the log.



Pause - Pauses the process of logging information in the Log.

Continue - Allows you to continue the process of logging information in the Log, once paused.

Search

Search - Allows you to enter keywords or text you are looking for. The search begins right away, directly with your input.

- Allows you to jump to the next entry found in the list.

- Allows you to jump to the previous entry found in the list.

- Clears any entered text and cancels the search.



MADRIX STELLA 8 User Manual 1.03.
