Introduction

SCE Flames is one of two fire effects.





Overview



Default Settings

Default Settings

Customized Example

Customized Example





Effect Options

This MADRIX Effects supports Effect Options for advanced workflows.

Learn more »Effect Options





Layer Settings

Various buttons and controls have universal functions. They are available for each MADRIX Effect / Layer.
Learn more »Effect Areas [Deck A / Deck B]
Learn more »Layers

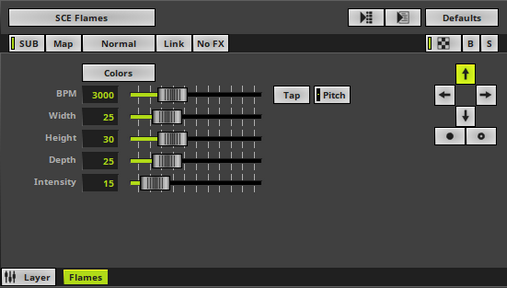

Effect Settings

This MADRIX Effect uses the following, individual controls:

Colors - Opens the Color Gradient to specify the colors. The default color is Black, Red, Yellow, White.
Learn more »[Global] Colors And Intensity

BPM - Defines the speed. The default value is 3000. Valid values range from 0 to 9999.
Learn more »Using BPM Control

Width - Defines the size of the flames [in %]. The default value is 25. Valid values range from 0 to 100.

Height - Defines the height of the flames [in %]. The default value is 30. Valid values range from 0 to 100.

Depth - Defines the depth of the flames [in %]. This is mainly relevant for 3D. The default value is 25. Valid values range from 0 to 100.

Intensity - Defines the thickness of flames [in %]. The default value is 15. Valid values range from 0 to 100.



Direction - Allows you to choose the direction of the movement. The default setting is Up. Learn more »Using Directions

Direction - Allows you to choose the direction of the movement [To The Front or To The Back]. This is mainly relevant for 3D. The default setting is Up. Learn more »Using Directions





Restoring The Default Settings

Restore Default Layer Settings - Restores the default settings of the Layer.
- All Layer Settings and Effect Settings will be restored to their default values.
- This does not include the MADRIX Effect selection, the Effect Parameter Chaser [which will be paused], or the Layer Macro [which will be stopped].



MADRIX 5.7.
