MADRIX Effects > [SCE] Static Color Effects

This topic includes:

Introduction

SCE Fill Snake fills the matrix in a snake-like mode.

Overview

		Default Settings
		Customized Example

Effect Options

▪This MADRIX Effects supports Effect Options for advanced workflows.

Learn more »Effect Options

Layer Settings

▪Various buttons and controls have universal functions. They are available for each MADRIX Effect / Layer.
Learn more »Effect Areas [Deck A / Deck B]
Learn more »Layers

Effect Settings

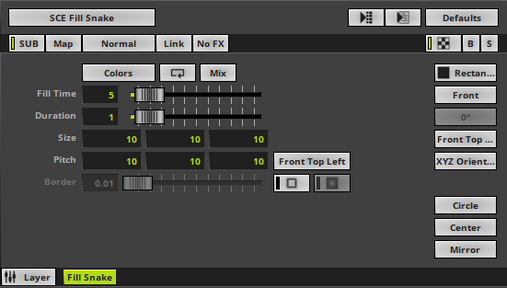

This MADRIX Effect uses the following, individual controls:

▪Colors - Opens the Color Table to specify the colors. The default colors are Red, Yellow, Green, Cyan, Blue, Magenta.
Learn more »[Global] Colors And Intensity

▪Fill Time - Defines the time how long it takes to fill the complete LED matrix with shapes [in s]. The default value is 5. Valid values range from 0.01 to 3600.

▪Duration - Defines the time the complete matrix is shown in solid color until the next round of objects begins to fill the matrix [in s]. The default value is 1. Valid values range from 0 to 3600.

▪Size - Defines the size of objects [Width, Height, Depth]. The default values are 10, 10, 10. Valid values range from 0.01 to 1000.

▪Pitch - Defines the distance between objects for all 3 axes [in % of the Matrix Size]. The default values are 10, 10, 10. Valid values range from 0 to 100.

▪Border - Is only available for 2D outlined shapes or 3D unfilled shapes. Defines how thick the outer line [border] of objects is. The default value is 0.01. Valid values range from 0.01 to 100.

	Blending Mode - Is only available when colors are defined with an alpha value in the Color Table. Defines how shapes and colors are blended [Alpha Blending, Substitution]. Alpha Blending uses the alpha channel to blend overlapping shapes with each other [i.e. if the Pitch is smaller than the Size]. Substitution replaces colors, and when using alpha this is especially visible when using two or more Layers.]
	Flush - Clears the matrix with the last used color before starting a new cycle. Is activated by default. Is visible for shapes other than Rectangle.
	Position Origin Type - Defines the point of origin of Shapes [and hence their relative position]. The default setting is Front Top Left.
	Outer Glow / Inner Glow - Is only available for specific Shapes. Defines the outer shimmer or inner gleam of objects. The default settings are 0.00. Valid values range from 0.01 to 100.
	Shape - Allows you to choose a specific shape for objects. A certain Size is required before a shape becomes visible. The default setting is Rectangle Filled.
	Shape Alignment - Allows you to choose to which side objects are aligned to. This is mainly relevant for 3D. The default setting is Front.
	Shape Rotation Type - Is only available for specific Shapes. Defines the angle in which objects are rotated [0°, 90°, 180°, 270°, Random]. The default setting is 0°.
	Start Corner - Defines where the snake movements starts [Front Top Left, Front Top Right, Front Bottom Left, Front Bottom Right, Back Top Left, Back Top Right, Back Bottom Left, Back Bottom Right]. This setting is available for 2D, but only in 3D all options are viable. The default setting is Front Top Left.
	Orientation Mode - Defines the general movement direction [XYZ Orientation, XZY Orientation YXZ Orientation, YZX Orientation, ZYX Orientation, ZXY Orientation]. This setting is available for 2D, but only in 3D all options are viable. The default setting is XYZ Orientation.
	Circle Mode - Activates a circular snake movement.
	Center Mode - Starts movement from the center instead of the outer edge.
	Mirror Mode - Duplicates the effect by mirroring it.

Restoring The Default Settings

Restore Default Layer Settings - Restores the default settings of the Layer.
- All Layer Settings and Effect Settings will be restored to their default values.
- This does not include the MADRIX Effect selection, the Effect Parameter Chaser [which will be paused], or the Layer Macro [which will be stopped].
