SCE Fill Random

  Previous  Next




SCE Fill Random continuously adds new objects until the whole LED matrix is filled.





Default Settings

Default Settings

Customized Example

Customized Example



Effect Options

This MADRIX Effects supports Effect Options for advanced workflows.

Learn more »Effect Options



Layer Settings

Various buttons and controls have universal functions. They are available for each MADRIX Effect / Layer.
Learn more »Effect Areas [Deck A / Deck B]
Learn more »Layers



Effect Settings

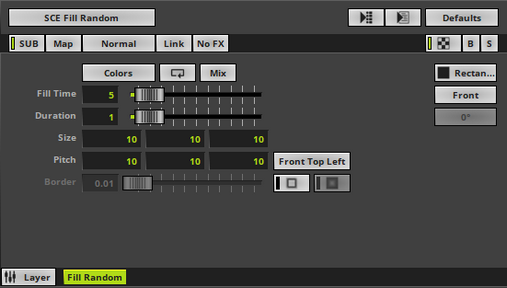

This MADRIX Effect uses the following, individual controls:

Colors - Opens the Color Table to specify the colors. The default colors are Red, Yellow, Green, Cyan, Blue, Magenta.
Learn more »[Global] Colors And Intensity

Fill Time - Defines the time how long it takes to fill the complete LED matrix with shapes [in s]. The default value is 5. Valid values range from 0.01 to 3600.

Duration - Defines the time the complete matrix is shown in solid color until the next round of objects begins to fill the matrix [in s]. The default value is 1. Valid values range from 0 to 3600.

Size - Defines the size of objects [Width, Height, Depth]. The default values are 10, 10, 10. Valid values range from 0.01 to 1000.

Pitch - Defines the distance between objects for all 3 axes. The default values are 10, 10, 10. Valid values range from 0 to 100.

Border - Is only available for 2D outlined shapes or 3D unfilled shapes. Defines how thick the outer line [border] of objects is. The default value is 0.01. Valid values range from 0.01 to 100.


Blending Mode - Is only available when colors are defined with an alpha value in the Color Table. Defines how shapes and colors are blended [Alpha Blending, Substitution].
Alpha Blending uses the alpha channel to blend overlapping shapes with each other [i.e. if the Pitch is smaller than the Size].
Substitution replaces colors, and when using alpha this is especially visible when using two or more Layers.]

Flush - Clears the matrix with the last used color before starting a new cycle. Is activated by default. Is visible for shapes other than Rectangle.

Position Origin Type - Defines the point of origin of Shapes [and hence their relative position].

Outer Glow / Inner Glow - Is only available for specific Shapes. Defines the outer shimmer or inner gleam of objects. The default settings are 0.00. Valid values range from 0.01 to 100.

Shape - Allows you to choose a specific shape for objects. A certain Size is required before a shape becomes visible. The default setting is Rectangle Filled.

Shape Alignment - Allows you to choose to which side objects are aligned to. This is mainly relevant for 3D. The default setting is Front.

Shape Rotation Type - Is only available for specific Shapes. Defines the angle in which objects are rotated [, 90°, 180°, 270°, Random]. The default setting is 0°.



Restoring The Default Settings

Restore Default Layer Settings - Restores the default settings of the Layer.
- All Layer Settings and Effect Settings will be restored to their default values.
- This does not include the MADRIX Effect selection, the Effect Parameter Chaser [which will be paused], or the Layer Macro [which will be stopped].
