Introduction

SCE Clouds creates random, organic visuals that are reminiscent of clouds.

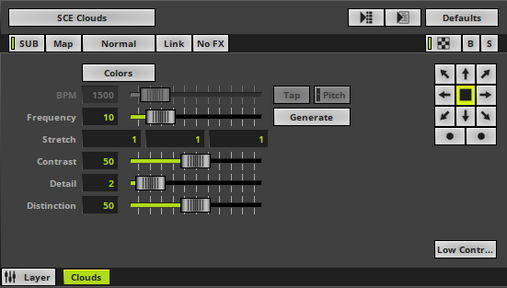

Overview





Layer Settings

▪Various buttons and controls have universal functions. They are available for each MADRIX Effect / Layer.
Learn more »Effect Areas [Deck A / Deck B]
Learn more »Layers





Effect Settings

This MADRIX Effect uses the following, individual controls:

▪Colors - Opens the Color Gradient to specify the colors. The default color is White, Black.
Learn more »[Global] Colors And Intensity

▪BPM - Defines the speed [when using a direction/movement]. The default value is 1500. Valid values range from 0 to 9999.
Learn more »Using BPM Control

▪Frequency - Defines the rate at which new, organic visuals are created [in Hz]. The default value is 10. Valid values range from 0 to 50.

▪Stretch - Defines the stretch or compression factor at which the visuals are displayed [X, Y, Z]. The default values are 1, 1, 1. Valid values range from 0.01 to 1000.

▪Contrast - Defines the visual differentiation of colors and shapes [in %]. The default value is 50. Valid values range from 1 to 1000.

▪Detail - Defines the sharpness [in %]. The higher the Detail, the more computer performance is required. The default value is 2. Valid values range from 1 to 10.

▪Distinction - Defines the cohesiveness of the effect [in %]. The default value is 50. Valid values range from 1 to 100.







Restoring The Default Settings
