S2L Waveform

  Previous  Next




S2L Waveform displays the audio input graphically. It is a timeline representation.

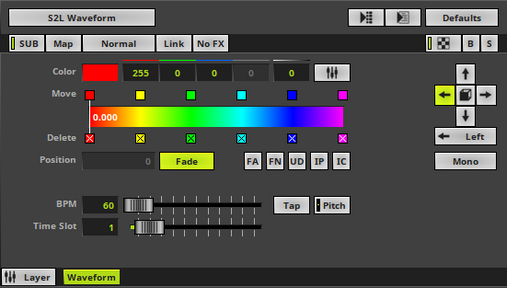

Default Settings

Default Settings

Customized Example

Customized Example



Effect Options

This MADRIX Effects supports Effect Options for advanced workflows.

Learn more »Effect Options



Layer Settings

Various buttons and controls have universal functions. They are available for each MADRIX 5 Effect / Layer.
Learn more »Effect Areas [Deck A / Deck B]
Learn more »Layers



Effect Settings

This MADRIX 5 Effect uses the following, individual controls:

Color - Defines the color using a Color Gradient control. The default color is Red, Yellow, Green, Cyan, Blue, Magenta.
Learn more »[Global] Colors And Intensity

BPM - Defines the speed. The default speed is 60. You can either use BPM or Time Slot. Valid values range from 0 to 9999.
Learn more »Using BPM Control

Time Slot - Defines the time interval [in s]. The default value is 1. You can either use BPM or Time Slot. Valid values range from 0.01 to 9999.


Direction/Mode - Allows you to choose the direction, including Look-At Type. This includes all directions for 2D and 3D mode. This heavily influences the visual outcome of the effect. The default setting is Left. Learn more »Using Directions

Channel - Allows you to choose the displayed audio channels [Stereo, Mono, Left, Right]. The default setting is Mono.



Restoring The Default Settings

Restore Default Layer Settings - Restores the default settings of the Layer.
- All Layer Settings and Effect Settings will be restored to their default values.
- This does not include the MADRIX 5 Effect selection, the Effect Parameter Chaser [which will be paused], or the Layer Macro [which will be stopped].
