Introduction
When To Use The Patch Editor
Additional Information
Step-By-Step Configuration
Examples
User Interface Of The Patch Editor
Menu
Options
Patch Properties Overview
2D Or 3D
Working With The Patch Editor
Fixture Configuration
How The Patch Affects The Live Previews
DMX Map
Further Tips





Introduction

You need to tell the MADRIX Software

1] which LED fixtures you are going to use.
2] how many LED fixtures you are going to use.
3] how they are placed.

This configuration of the virtual LED matrix is stored in a so-called Patch file.

Setting up the virtual LED matrix/the Patch file is a requirement! It is necessary for the initial configuration of MADRIX.

MADRIX offers 2 tools for this task:

Matrix Generator
Patch Editor





When To Use The Patch Editor

The Matrix Generator helps you to generate a virtual LED matrix automatically according to your settings. This automatic process can be very helpful, when your LED installation is set up in a very simple, logical, or linear way and only uses 1 fixture type. The Patch file will be automatically generated by MADRIX for you.

The Patch Editor is a graphical editor to directly create the Patch file. The Patch Editor offers the same functions as the Matrix Generator and many more options. It allows you to configure your virtual matrix in great detail. You can place LED fixtures freely and individually. If you have more than 1 kind of fixture, use the Patch Editor.

This topic explains the Patch Editor.





Additional Information

The Patch Editor is a powerful tool. While this chapter explains the main features, there are several other chapters that explain more advanced topics regarding the Patch Editor.

»DVI Patch
»CSV Fixture List Import
»Merging Patches
»Background Image





Step-By-Step Configuration

To work with the Patch Editor, follow these steps:

1] Open the Patch Editor.

2] Delete all currently included fixtures [except when they are needed].

3] Add all fixtures you require and configure them accordingly.

4] Set up the Matrix Settings.

5] Close the Patch Editor.



1] Open The Patch Editor

Go to the menu Preferences > Patch Editor...
[Keyboard shortcut: F3]
A new window will open.



The Patch Editor is a separate window. Hence, you will be able to control MADRIX while working with the Patch Editor.



2] Delete Fixtures

Click Select All to select all fixtures or single-handedly select unnecessary fixtures.
[Keyboard shortcut: Ctrl+A]
Click Delete to delete the selected fixtures from the workspace.
[Keyboard shortcut: Del]

You can also click New to create a new Patch file and remove all fixtures at once.
[Menu File > New Patch; Keyboard shortcut: Ctrl+N]



3] Add And Configure Fixtures

Click Add + to add new fixtures to the workspace.
[Keyboard shortcut: Ins]
A new window will open.
Add your fixtures as explained in the chapter »Matrix Generator and consider the following settings additionally:
- The Start Fixture ID needs to be a number that is not yet occupied by fixtures in the Patch. Each fixture needs its own, unique Fixture ID. MADRIX will automatically provide the next number that is free to use. [You will not be able to add new fixtures if an ID is not unique.]
- You can choose not to set up all Addressing in the Add Fixtures window. The Patch Editor allows you to configure each fixture individually later.
- DMX Start Universe - MADRIX will automatically calculate the next free start universe according to the fixture profile you have currently selected [Fixture > Product] and according to any changes you are making regarding your Patch. In order for this to work, Auto Address needs to be enabled in the Patch Editor [Preferences > Automatically Address New DMX Fixtures].
- DMX Start Channel - MADRIX will automatically calculate the next free start channel according to the fixture profile you have currently selected [Fixture > Product] and according to any changes you are making regarding your Patch. In order for this to work, Auto Address needs to be enabled in the Patch Editor [Preferences > Automatically Address New DMX Fixtures].
- Make sure to set up Start Position X / Y / Z. This will position fixtures correctly on the workspace and prevent fixtures to overlap. [You will not be able to add new fixtures if their positions overlap. However, you can intentionally allow overlapping fixtures if you want to as explained below.]

Add Fixtures

- Click Add to add your fixtures.



Configure your fixtures further if needed. [Please see below]
Repeat the steps to add more fixtures or fixtures of different types.
The Patch Editor is very flexible. Fixtures can simply and are often required to be rearranged, readdressed, added, and deleted later. Adding fixtures is an initial step to create the individual Patch for your individual LED installation.
Click Close to close the window.



4] Set Up The Matrix Settings

After you have set up and configured all of your fixtures, it is important to define the Matrix Settings.
Click Matrix Settings
[menu Edit > Matrix Settings...]
A new window will open.

The virtual LED matrix represents your LED fixtures. Therefore, it is the area on which the MADRIX Effects are rendered and displayed, and ultimately sent to your output. MADRIX needs to know in pixels/voxels how large your LED project is in total.

Set up the Matrix Size according to all of these parameters:

Match Voxel Map Area - Automatically adjusts the Matrix Size Settings to the fixtures that are placed in the Voxel Map of the Patch Editor.
Size X - Defines the total size of the virtual LED matrix in X in pixels/voxels [horizontal; width].
Size Y - Defines the total size of the virtual LED matrix in Y in pixels/voxels [vertical; height].
Size Z - Defines the total size of the virtual LED matrix in Z in pixels/voxels [level; depth].
- Choose Size Z = 1 to work in 2D.
- Choose a value higher than 1 and MADRIX will automatically create a virtual matrix in 3D.
Match Color Depth - Automatically adjusts the Matrix Color Depth Settings to the color depth of the fixtures that are placed in the Voxel Map of the Patch Editor.
Color Depth - Defines the number of color channels your LED fixtures use.
[For example, a color depth of 3 resembles RGB and a color depth of 4 represents RGBW.]

Confirm your changes with OK



5] Close The Patch Editor

Close the Patch Editor when you have fully set up and configured your Patch correctly.
[Continue to learn how to work with the Patch Editor below.]

When you want to close the Patch Editor, click X
or go to the menu File > Close when you want to close the Patch Editor.
[Keyboard shortcut: F3]
When you save your MADRIX Setup file, the Patch file is automatically included.





Examples

Note: Each LED project is different. That is why each Patch in the Patch Editor will look different. There are no general settings that can be applied to every project. Instead, please make sure that the Patch is set up in MADRIX according to your individual LED installation.

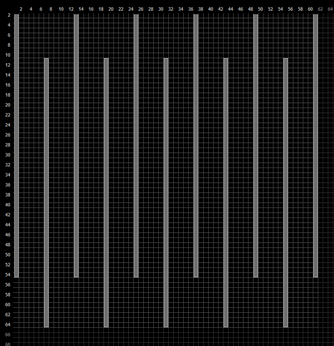

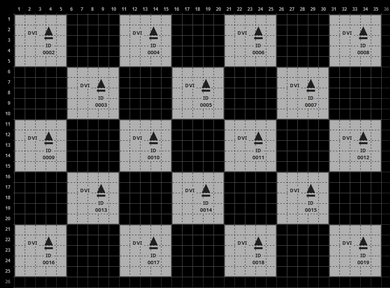

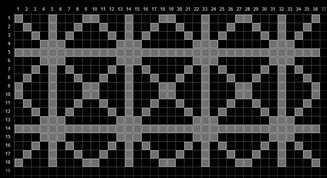

Here are just a few examples of how a Patch could look like:





User Interface Of The Patch Editor

Overview

The user interface of the Patch Editor is divided into several, different parts.

On top, you will find the menu.
Below the menu, you see the toolbar.
Below the toolbar, 3 sections are available.

On the left side, you see the Fixture List.
The middle section represents a graphical version of your workspace and of your virtual LED matrix. [There are three different view modes available for this section. Learn more below.]
On the right side, you can use various settings for the fixture configuration.



Rearrange the width of each section by dragging the section edges.
Hide the left section or the right section by dragging their edge to the outer border of the Patch Editor window. Display them again by dragging the border back.

Choose View > Restore Default Window Layout in order to reset the layout of the Patch Editor to its original settings [or if you are experiencing graphical glitches].



Menu And Toolbar

The Patch Editor has a separate menu and a toolbar for shortcuts:

All items of the menu are explained below.
The toolbar provides shortcuts to convenient tasks and includes the majority of options that are also included in the menu.
- You can rearrange the toolbar using Left Mouse Click And Drag And Drop

Patch Toolbar



Fixture List [Left Side]

The left side of the Patch Editor shows the Fixture List:

The Fixture List provides information and allows you to select specific fixtures.
- You can choose to show DVI fixtures [DVI] and DMX fixtures [DMX Universes]. Select it if you want to see DVI fixtures or which particular DMX universe.
- DMX fixtures are shown with their name, index number, and DMX start channel.
- DVI fixtures are shown with their index number, and if DVI Mapping is active.
- Select fixtures with your mouse and they will be automatically selected in the graphical middle section. Select several fixtures by using the Shift or Ctrl button in addition.
- Select the Fixture List and use the Left Arrow Key and the Right Arrow Key to navigate through all DMX Universes and DVI.



Information And Configuration [Right Side]

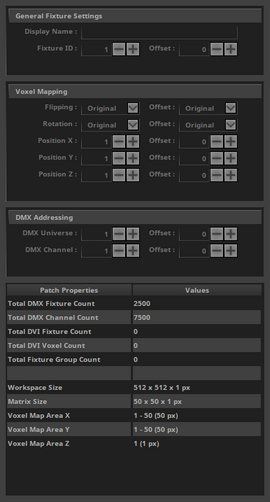

The right side of the Patch Editor is a context-sensitive panel that shows different items depending on your selection [fixtures, fixture groups, no selection].

Learn more about the right section to configure your fixtures and read the information provided below.

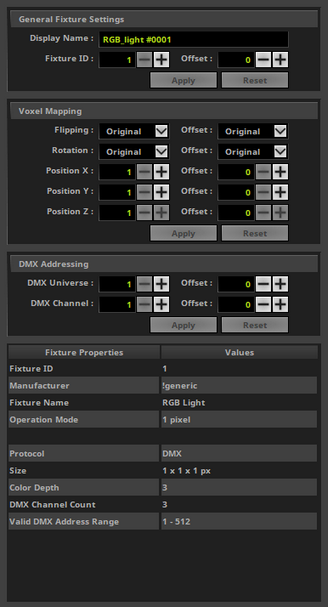

Fixture Settings

Graphical Overview [Middle Section]

The middle section is the most important section.
3 view modes are available for the graphical overview:
- Voxel Map - Is the default view mode to work with the Patch Editor. The following explanations mainly reference this view mode!
- DVI Map - Is only relevant when working with DVI fixtures. Learn more »DVI Patch

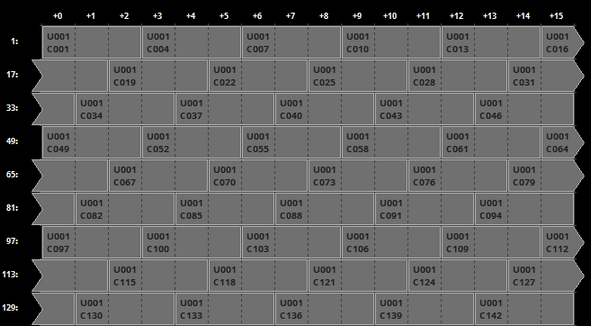

- DMX Map - Allows you to view the Patch with regards to occupied and used DMX channels. This mode will be explained separately. Learn more DMX Map
The Voxel Map shows fixtures and settings in the following ways:
- The size of the virtual LED matrix [Matrix Settings] is shown with the help of a light gray grid.
- The total workspace you can work on is shown with the help of a dark gray grid.
- You can see the position of fixtures.
- DVI fixtures are displayed in light gray with a dark outline.
- Selected DVI fixtures are displayed in green.
- DMX fixtures are displayed in dark gray with a light outline.
- Selected DMX fixtures are displayed in green.
- There is an integrated system for error and information messages. A message box will be displayed at the bottom of the middle section. Close the message with x

Patch Workspace

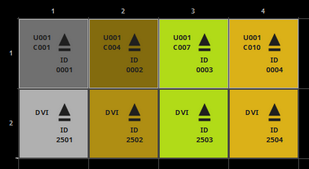

Color of Fixtures

Exemplary Message

The following work-flows are mainly relevant for the view mode Voxel Map, but can also work selectively in the DMX Map.





Menu

Ctrl+N - This is a keyboard shortcut that will perform the action directly rather than using the menu.
... - Indicates that an extra window will open on top of the Patch Editor window.

File Menu

Patch File Menu

New Patch - Removes all fixtures and creates a new and empty workspace [MADRIX can only have one Patch file at a time].
Open Patch... - Loads a previously saved patch file.
Merge Patches... - Allows you to merge different Patch files and combine them in order to create a single, large Patch file.
Lear more »Merging Patches
Save Patch - Saves the Patch file in its current state.
Save Patch As... - Saves the Patch file as a new file.

Import Fixture List... - Allows you to import a list of fixtures in CSV file format.
Export Fixture List... - Allows you to export the currently patched fixtures as a convenient HTML site for further use.



Print Fixture List... - Allows you to send the currently patched fixtures as a convenient list directly to your printer.

Update Fixtures From Library - Allows you to refresh all fixture profiles in the Patch from the currently loaded MADRIX Fixture Library, in case you changed fixture profiles that are included in the Fixture Library with the help of the Fixture Editor. Changing the fixture profiles after creating the Patch can sometimes be necessary and is often easier than creating the Patch again from the beginning [MADRIX will not update fixtures under certain cirumstances. That is the case, when the Fixture Library does not contain the fixture type, i.e. the unique fixture ID is not included (UUID), or when a DVI fixture is made out of more voxels than defined in the Fixture Library, for example when having chosen Merge Fixtures while adding them.]
Export Selected Fixture... - Allows you to save a fixture directly from the Patch to an external file [of the file type *.mfxx] without using the Fixture Editor. Simply select a fixture in the Patch Editor first. Then, choose a name.

Close - Closes the Patch Editor.



Edit Menu

Patch Edit Menu

Undo - Restores the previous state of the Patch and reverts your last actions.
Redo - Recreates the state again after having performed an Undo.

Matrix Settings... - Defines the main settings of the Patch file [as explained above].

Add Fixtures... - Opens a new window in order to add fixtures to the workspace.
Remove Selected Fixtures - Removes the selected fixtures from the workspace.
Restore DVI Mapping Defaults For Selection - Is only relevant when working with DVI fixtures. Learn more »DVI Patch
Move Map Area To Matrix Origin - Moves the entire map area and all of its included fixtures to position 0, 0, 0.

Flip Selection Horizontally - Flips all the selected fixtures horizontally. This flips the entire selection once as one block instead of all fixtures individually.
Flip Selection Vertically - Flips all the selected fixtures vertically. This flips the entire selection once as one block instead of all fixtures individually.
Flip Selection Horizontally And Vertically - Flips all the selected fixtures horizontally and vertically. This flips the entire selection once as one block instead of all fixtures individually.
- When flipping multiple fixtures, these 3 functions will flip the entire block of fixtures. The position of each fixture will change as they are flipped using the central point of all fixtures.
- Therefore, it is different to the Flipping that can be applied in the section Voxel Mapping when a fixture is selected. That function will flip each fixture individually and not change the positions.

Rotate Selection By 90° - Changes the rotation of the selected fixtures by 90°. This rotates the entire selection once as one block instead of all fixtures individually.
Rotate Selection By 180° - Changes the rotation of the selected fixtures by 180°. This rotates the entire selection once as one block instead of all fixtures individually.
Rotate Selection By 270° - Changes the rotation of the selected fixtures by 270°. This rotates the entire selection once as one block instead of all fixtures individually.
- When rotating multiple fixtures, these 3 functions will rotate the entire block of fixtures. The position of each fixture will change as they are rotated using the central point of all fixtures.
- Therefore, it is different to the Rotation that can be applied in the section Voxel Mapping when a fixture is selected. That function will rotate each fixture individually and not change the positions.



View Menu

Patch View Menu

Voxel Map - Is one of three view modes. It is the default view mode to work with the Patch Editor.
DVI Map - Is one of three view modes. It is only relevant when working with DVI fixtures. Learn more »DVI Patch
DMX Map - Is one of three view modes. Allows you to view the Patch with regards to occupied and used DMX channels. Learn more DMX Map
Background Image - Is an additional viewing feature for Voxel Map and DVI Map. Allows you to load an image into the background to make placing fixtures easier. Learn more »Background Image

Zoom In - Determines the level of detail. Zoom in to see single fixtures, their assigned universe, channel, and rotation.
Zoom Out - Determines the level of detail and allows you to see more of the workspace.
Focus All - Automatically adjusts the zoom level to show all fixtures on the workspace.
Focus Selection - Automatically adjusts the zoom level to show all currently selected fixtures.

Toolbars - Shows or hides the corresponding toolbars and icons [File, Edit, View, Preferences, Fixture Groups, Select].

Restore Default Window Layout - Restores the default user interface and layout of the Patch Editor.



Preferences Menu

Patch Preferences Menu

Highlight Selected Fixtures - Makes selected fixtures flash with white color. This makes it easier to identify and see them on stage. This feature is available for DMX-based fixtures.
Allow Fixtures To Overlap - Allows fixtures as well as their DVI Mapping to be arranged on top of each other on the virtual LED matrix. If deactivated, you cannot place any fixture on a position that is already occupied by another fixture or DVI Map.
Link DVI Mapping And Voxel Mapping - Is only relevant when working with DVI fixtures. Learn more »DVI Patch
Copy DVI Mapping - Is only relevant when working with DVI fixtures. Learn more »DVI Patch

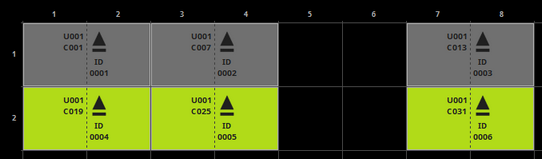

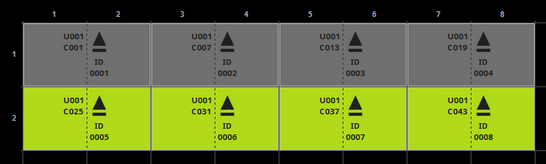

Automatically Address New DMX Fixtures - Automatically sets up the DMX addresses for DMX fixtures that are added to the Patch by newly adding or copying them. Learn more below.

Options... - Will open a new window in order to change various options of the Patch. Learn more below



Fixture Groups Menu

Patch Edit Menu

Create Emptry Fixture Group - Creates a fixture groups which does not contain any fixtures yet.
Create Fixture Group From Selected Fixtures - Creates a fixture group that automatically includes all fixtures that have been selected before.
Remove Selected Fixture Groups - Removes all fixture groups that are currently selected from the Patch.

Assign Selected Fixtures To Selected Fixtures Groups - Adds all currently selected fixtures to all fixture groups that are currently selected.
Release Selected Fixtures From Selected Fixture Groups - Releases all currently selected fixtures from all fixture groups that are currently selected.
Release Selected Fixtures From All Fixture Groups - Releases all currently selected fixtures from all fixture groups that they are assigned to.

Learn more »Fixture Groups [Group Control]



Select Menu

Patch Select Menu

Select All - Selects every single fixture that is included in your Patch. At the same time, all fixtures will be selected in the Fixture list on the left.
Deselect All - Revokes the current fixture selection.
Invert Selection - Selects every fixture except the ones you have currently selected.





Options

Overview

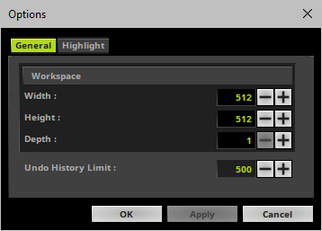

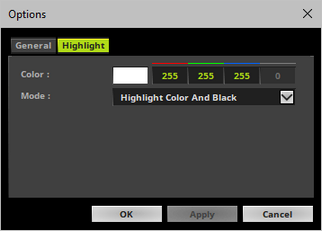

In the Patch Editor, go to the menu Preferences > Options...
[Keyboard shortcut: Ctrl+Alt+O]



General

Workspace

The workspace allows you to freely position fixtures and work with them on a grid.
By default, the workspace size is set to 512 x 512 x 1 pixels [X x Y x Z].

If needed, change the size of the workspace according to your needs by adjusting Width, Height, and Depth
MADRIX will automatically increase the size of the workspace if you are adding fixtures to positions that are outside of the current workspace size.

Note: The workspace is the large grid you are working on. In contrast, the virtual LED matrix [i.e., Matrix Settings] tells MADRIX the total size of the fixtures and of the LED installation.



Undo And Redo

You can use Undo and Redo to revert actions while working in the Patch Editor.
By default, the Patch Editor allows 500 steps to be reversed.

If needed, change this so-called Undo History Limit according to your needs.



Highlight

Highlight Options allow you to change how the built-in Highlight mode for fixtures work [menu Preferences > Highlight Selected Fixtures].

Color - Defines the color that is sent to highlighted fixtures. By default color is white.
Mode - Defines how the highlight mode works. Select from 2 options:
- Highlight Color And Black - Uses the defined Color and highlights all selected fixtures. All fixtures that are currently not selected will receive the color black. This is useful to single out fixtures in a test environment.
- Highlight Color And Output - Uses the defined Color and highlights all selected fixtures. All fixtures that are currently not selected will receive the normal output of the MADRIX Software. This is useful during a show to not interrupt the data and effects for all other fixtures.





Patch Properties Overview

The Patch Editor can provide a useful overview over the most important settings, such as Matrix Size and Workspace. The overview is provided in the lower right corner. First, make sure that no fixture is selected!

Patch Properties - The following information is available to you:
- Total DMX Fixture Count - Shows the overall number of DMX fixtures that are currently included in your Patch file.
- Total DVI Fixture Count - Shows the overall number of DVI fixtures that are currently included in your Patch file.
- Total Fixture Group Count - Shows the overall number of Fixture Groups that are currently included in your Patch file.

- Workspace Size - Shows the currently set up size of the Workspace
- Matrix Size - Shows the currently set up Matrix Size in the Matrix Settings.
- Voxel Map Area X - Shows the size of the area on which fixtures are patched and located in X, independently of the Matrix Size that is defined.
- Voxel Map Area X - Shows the size of the area on which fixtures are patched and located in Y, independently of the Matrix Size that is defined.
- Voxel Map Area X - Shows the size of the area on which fixtures are patched and located in Z, independently of the Matrix Size that is defined.
- DVI Map Area X - Is only visible when DVI fixtures are included in the Patch. Shows the size of the area on which DVI fixtures with DVI Mapping are patched and located in X. »DVI Patch
- DVI Map Area Y - Is only visible when DVI fixtures are included in the Patch. Shows the size of the area on which DVI fixtures with DVI Mapping are patched and located in Y. »DVI Patch
- DVI Map Area Z - Is only visible when DVI fixtures are included in the Patch. Shows the size of the area on which DVI fixtures with DVI Mapping are patched and located in Z. »DVI Patch





2D Or 3D

Overview

MADRIX can control 2D projects as well as 3D projects.
Learn more »2D Or 3D [X, Y, Z]
You automatically choose to work in 2D or in 3D, when you add new fixtures or set up the virtual LED matrix [Matrix Settings].
Learn more above



Z-Levels

Make sure to select the view mode Voxel Map first.



The Patch Editor only provides a 2D, graphical representation, even if you are working in 3D.
To access and configure all fixtures of a 3D project, you can select the different Z-levels that make up your project.

When working in 2D, only one Z-level is needed and available [Z-Layer 1].



When working in 3D, you can select and view each Z-level according to your needs.

A] You want to select only one Z-level:
1] View From - Select the Z-Layer you wish to see and work with.
2] Leave To deactivated.
3] You will be able to select and work with the fixtures of only 1 Z-level at a time.



B] You want to select several or all Z-levels at once:
1] View From - Select the first Z-Layer you wish to see and work with.
2] To - Activate it. Then, select the last Z-Layer you wish to work with.
3] All Z-levels and their corresponding fixtures within that range of Z-levels will be selectable.

Example:
If you want to select and work with all fixtures of your 3D project that features 10 Z-levels,
set up View From Z-Layer 1 To Z-Layer 10


- If you now want to select all fixtures, click Select All [or press Ctrl+A].
- If you want to select one fixture, simply click on it.
- If you want to select a fixture and all other corresponding fixtures on the same position on each Z-level, make sure to use the ways of selecting multiple fixtures as described below [e.g., rectangular selection mode via Shift].
- If you are selecting multiple fixtures on the Z-level you currently see, all corresponding fixtures on each Z-level will also be selected.
- Use the Fixture List [on the left side of the Patch Editor] to double-check which fixtures you have currently selected.



More Information:


- Z-Layers with a green background show the currently selected Z-level.
- Z-Layers with a blue background show the currently occupied and used Z-levels. There are fixtures patched on those Z-Layers.
- Z-Layers with a black background show Z-levels that are set up in the Matrix Size, but there are no fixtures patched on those Z-levels.





Working With The Patch Editor

The following work-flows are mainly relevant for the view mode Voxel Map, but can also work selectively in the DMX Map.

Overview

Selection
A] Left-click on a single fixture in the graphical middle section in order to select it.
B] Left-click a fixture in the Fixture List and it will automatically be selected in the graphical middle section.
Multiple Selection
A] Left-click on fixtures while holding Ctrl on your keyboard in order to select several fixtures.
B] Hold Shift on your keyboard. Then, hold your left mouse button and drag your mouse. A selection mask will become visible. It is displayed with the help of a dotted line.
Additionally, hold the Ctrl button and you will be able to select different areas of the Patch which will be added to your selection.
C] Hold Shift, left-click the first fixture, then left-click the last fixture, and applying a rectangular selection mode, every single fixture between the first and the last fixture will be selected.
Hold Ctrl and Shift at the same time and you can select different fixtures each time, while the previously selected fixtures remain selected.
D] Select several fixtures via Shift+Left click or Ctrl+left click in the Fixture List and they will be automatically selected in the graphical middle section.
Zoom
- Use the scroll wheel to zoom in or to zoom out.
Navigation
- Press Space and left click in order to drag the graphical middle section for navigation. [You can also use the scroll bars.]
Position [Drag And Drop]
- Select a fixture and hold the mouse button. Then, move your cursor. Your selection will stand out from the rest of the Patch. Drop it on the new position and it will automatically snap to this position according to the grid.
- This also works with multiple fixtures.
- Use drag and drop in combination with Ctrl to copy fixtures and the DMX universe and DMX channel will be automatically adjusted [if this option is activated in the menu]. Learn more Copying Fixtures
Position [Keyboard]
- Select one or several fixtures and use the arrow keys on your keyboard to move them to a different position.
Rotation
- Select multiple fixtures and use Page Up or Page Down on your keyboard to rotate the entire block of fixtures. They will be literally rotated using the central point of all fixtures. Hence, the position will be changed automatically. [In contrast, if you select several fixtures and adjust the Rotation in the Fixture settings, each fixture will be rotated individually. Their positions will not change. ]



Copying DVI Fixtures

Single DVI Fixtures

Select a single DVI fixture while holding Ctrl. Then, continue to hold Ctrl and the left mouse button and drag your mouse and a copy of the DVI fixture will be created. Simply release the mouse at the fixture's new position.

Multiple DVI Fixtures

Select multiple DVI fixtures while holding Ctrl. Now hold down the left mouse button at the same time on any of the selected fixtures. Drag your mouse and copies of the DVI fixtures in a corresponding pattern will be created. Simply release the mouse at the fixtures' new position.



Copying DMX Fixtures [Auto Addressing]

Overview

Pay attention when using auto addressing and double-check if each fixture is addressed correctly!



Copying DMX fixtures has been improved by adding auto addressing.
If auto addressing is enabled, MADRIX will automatically increase the DMX channel [and DMX universe] of the copied fixture.
In the Patch Editor, go to Preferences > Automatically Address New DMX Fixtures to activate auto addressing.
Disable this feature and the copied fixtures will have the same DMX channel and universe as their sources.



Single Fixtures

Select a single DMX fixture while holding Ctrl. Then, continue to hold Ctrl and the left mouse button and drag your mouse and a copy of the DMX fixture will be created. Simply release the mouse at the fixture's new position.
The DMX channel and the DMX universe will be automatically adjusted if auto addressing is enabled.
Example: The original fixture at position 1,1 is patched to DMX universe 1 and channel 1. It requires 3 DMX channels. Therefore the first copy, fixture number 2, is automatically set to channel 4, and so on.


Autoincrement with Single Fixtures



Multiple Fixtures

If you select several DMX fixtures, auto addressing also works. The intelligent function calculates the next free DMX address for each of the copied DMX fixtures and automatically adjusts the DMX channel and the DMX universe for each fixture.
Example 1: A row of four linearly addressed fixtures shall be copied at once [6 DMX channels per fixture]. Result: Each fixture will be addressed to the next free DMX address in comparison to the previous fixture.



Example 2: A row of four linearly addressed fixtures shall be copied at once, while fixture number 3 has a higher address than fixture number 4 [6 DMX channels per fixture]. Result: Fixture number 7 has also a higher DMX address than fixture number 8.



Example 3: A row of three linearly addressed fixtures should be copied at once, while spacing and an offset is added to fixture number 3 [6 DMX channels per fixture]. Result: Fixture number 6 continues with the next free addressing of fixture number 5 and does not have an additional offset, while keeping the spacing.



Highlight Selected Fixtures

Makes corresponding fixtures flash for better identification. This makes it easier to see them on stage/in your LED installation. That means, if you select one or several fixtures within the Patch Editor, the corresponding LED fixtures in your installation will light up completely white.
This feature is available for DMX-based fixtures without restrictions.
Highlighting DVI-based fixtures is possible. For the feature to work, make sure that the External Previews are set to DVI Map Mode.



Allow Fixtures To Overlap

This feature allows fixtures to overlap. In order to rearrange the Patch, a fixture may be dragged/repositioned to the position of another fixture.





Fixture Configuration

The following work-flows are mainly relevant for the view mode Voxel Map, but can also work selectively in the DMX Map.

Overview

In order to configure a fixture in the Patch Editor, select it first.
The corresponding information will be displayed in the third column.
When selecting multiple fixtures, settings can be confirmed with OK and will apply to each fixture individually.
Configure each fixture according to your requirements!

Fixture Settings



General Fixture Settings
- Display Name - Defines a label for the fixture.
- Fixture ID - Defines the unique identifier for this fixture. Each fixture needs its own, unique Fixture ID.
- Always confirm with OK

Voxel Mapping - Includes settings that refer especially to pixel mapping and voxel mapping [e.g., the position of fixtures].
- Flipping - Allows you to flip a fixture horizontally, vertically, or both. Learn more below
- Rotation - Allows you to rotate a fixture. Learn more below
- Position X - Defines the horizontal position of the fixture.
- Position Y - Defines the vertical position of the fixture.
- Position Z - Defines the depth position of the fixture.
- Always confirm with OK

DMX Addressing - Includes settings that refer especially to the DMX address of a fixture.
- DMX Universe - Defines the second part of the DMX address of DMX fixtures. Usually, each fixture has a specific and unique DMX address. Learn more »Glossary
- DMX Channel - Defines the first part of the DMX address of DMX fixtures. Usually, each fixture has a specific and unique DMX address. Learn more »Glossary
- Always confirm with OK


- Offset - Allows you to quickly add or subtract values from a setting. For example, if you have multiple fixtures selected and want to increase all their DMX channels by 3, simply add an Offset of 3.

- OK - Always confirm any changes with OK.
- Reset - Allows you to discard changes before having confirmed any changes in order to use the values that were set up last.



Fixture Properties - Provides basic information about the fixture profile of the currently selected fixture.
- Fixture ID - Shows the unique identifier of the fixture.
- Manufacturer - Shows the name of the manufacturer of the fixture as defined in the MADRIX Fixture Editor.
- Fixture Name - Shows the name of the fixture as defined in the MADRIX Fixture Editor.
- Operation Mode - Shows the mode of the fixture as defined in the MADRIX Fixture Editor.

- Protocol - Shows the type of the fixture as defined in the MADRIX Fixture Editor.
- Size - Shows the amount of pixels/voxels of the fixture as defined in the MADRIX Fixture Editor.
- Color Depth - Shows the color depth of the fixture as defined in the MADRIX Fixture Editor.
- DMX Channel Count - Shows the number of DMX channels that the fixture uses as defined in the MADRIX Fixture Editor.
- Valid DMX Address Range - Shows the lowest and highest possible DMX channel address for the fixture as defined in the MADRIX Fixture Editor.

- DVI Mapping - Shows if an individual DVI Mapping is configured for the DVI fixture.



DVI Mapping - Is only relevant for DVI fixtures. Learn more »DVI Patch



Fixture Rotation

Fixture rotation is shown for both DMX and DVI fixtures with the help of a solid arrow.
A small baseline indicates the opposite direction of the direction the arrow shows for better identification.

Original
[0°]

90°

180°

270°



Fixture Flipping

Fixture flipping is shown for both DMX and DVI fixtures with the help of a double arrow [two-way symbol].
If a fixture is not flipped, no symbol will be shown.
Flipping is applied to the original fixture position, before rotation.

Original
[None]

Flip H
[Horizontal]

Flip V
[Vertical]

Flip HV
[Horizontal
And Vertical]





How The Patch Affects The Live Previews

All Previews [including Preview Deck A, Preview Deck B, Preview Output as well as External Preview 1 and External Preview 2] are affected by your individual Patch [i.e. virtual LED matrix].
The Patch represents your LED installation on a more technical level.
The Previews will represent the Patch and in this way your LED installation.
Learn more »3 Previews





DMX Map

The DMX Map is one of three view modes that are available for the Patch Editor.

Voxel Map - Is the default view mode in order to work with the Patch Editor and the Patch.
DVI Map - Is only relevant when working with DVI fixtures. Learn more »DVI Patch
DMX Map - Allows you to view the Patch with regards to occupied and used DMX channels.



To display DMX Channel mode, click DMX Map
[menu View > DMX Map]
[Keyboard shortcut: F7]



The DMX Map:
- Is a separate view mode. But it is not independent from the Voxel Map. If you change something here, the corresponding settings will also change in the Voxel Map.
- Shows all 512 DMX channels per DMX universe.
- Shows the fixtures not based on their pixel/voxel count, but on the DMX channels they use.
- Shows 16 DMX addresses per row. If a fixtures uses DMX channels that are located on several rows, the Patch Editor will display such a fixture with the help of a split arrow.
- Is another way to work with DMX fixtures. It will be empty if you are only using DVI fixtures.
- Can be used to work with DMX fixtures. A lot of the work-flows of the Voxel Map will work here as well.



In order to work in a specific DMX universe, select the particular DMX Universe first.





Further Tips

Make sure to save your MADRIX Setup file after the configuration process.

You may also save and/or export the Patch file [of the file type *.mpz or *.mpx] separately. In the Patch Editor, go to File > Save Patch As...



MADRIX 5.0d
[Ctrl & +/-] = Zoom In/Out | [Ctrl & 0] = 100%
Print   Previous   Next


Enable automatic translation | Activer la traduction automatique | 启用自动翻译
