MADRIX Effects > [SCE] Static Color Effects

This topic includes:

Introduction

SCE Tubes displays various kinds of tubes at various positions.

Overview

		Default Settings
		Customized Example

Effect Options

▪This MADRIX Effects supports Effect Options for advanced workflows.

Learn more »Effect Options

Layer Settings

▪Various buttons and controls have universal functions. They are available for each MADRIX 5 Effect / Layer.
Learn more »Effect Areas [Deck A / Deck B]
Learn more »Layers

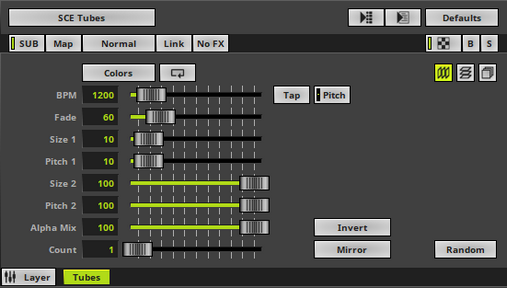

Effect Settings

This MADRIX 5 Effect uses the following, individual controls:

▪Colors - Opens the Color Table to specify the colors. The default color is White.
Learn more »[Global] Colors And Intensity

▪BPM - Defines the speed. The default value is 1200. Valid values range from 0 to 9999.
Learn more »Using BPM Control

▪Fade - Defines how fast MADRIX 5 displays the effect [in %]. The default value is 60. Valid values range from 1 to 3000.

▪Size 1 - Defines the first size of tubes depending on the direction [in % of the Matrix Size]. The default value is 10. Valid values range from 0.01 to 100.

▪Pitch 1 - Defines the first distance between tubes depending on the direction [in % of the Matrix Size]. The default value is 10. Valid values range from 0.01 to 100.

▪Size 2 - Defines the second size of tubes depending on the direction [in % of the Matrix Size]. The default value is 100. Valid values range from 0.01 to 100.

▪Pitch 2 - Defines the first distance between objects depending on the direction [in % of the Matrix Size]. The default value is 100. Valid values range from 0.01 to 100.

▪Alpha Mix - Defines the upper limit of how much alpha is added to each object. Alpha Mix will be visible when using additional Layers. The default value is 100. Valid values range from 0 to 100.

▪Count - Defines the number of objects. The default value is 1. Valid values range from 1 to 9999.

	Invert - Inverts the position of objects.
	Mirror - Mirrors objects by creating duplicates on the opposite position.
	Vertical Mode - Activates or deactivates the use of vertical objects. All 3 modes can be used at the same time. It is activated by default.
	Horizontal Mode - Activates or deactivates the use of horizontal objects. All 3 modes can be used at the same time.
	Depth Mode - Activates or deactivates the use of objects in the depth. All 3 modes can be used at the same time.
	Mode - Allows you to choose the mode in which way objects are generated [Random, Linear, or Ping Pong]. The default setting is Random.

Restoring The Default Settings

Restore Default Layer Settings - Restores the default settings of the Layer.
- All Layer Settings and Effect Settings will be restored to their default values.
- This does not include the MADRIX 5 Effect selection, the Effect Parameter Chaser [which will be paused], or the Layer Macro [which will be stopped].

MADRIX 5.7.
