Introduction

S2L Tubes display the frequencies of the audio signal in form of various tubes.





Overview



Default Settings

Default Settings

Customized Example

Customized Example





Effect Options

This MADRIX Effects supports Effect Options for advanced workflows.

Learn more »Effect Options





Layer Settings

Various buttons and controls have universal functions. They are available for each MADRIX 5 Effect / Layer.
Learn more »Effect Areas [Deck A / Deck B]
Learn more »Layers

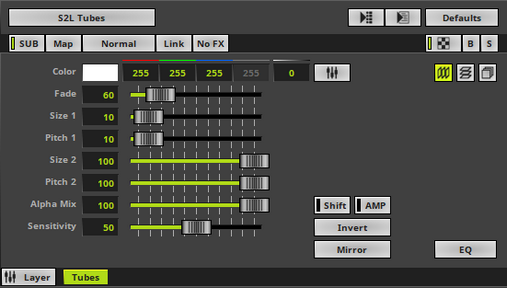

Effect Settings

This MADRIX 5 Effect uses the following, individual controls:

Color - Defines the color. The default color is White.
Learn more »[Global] Colors And Intensity

Fade - Defines how fast MADRIX 5 displays the effect. The default value is 60. Valid values range from 1 to 3000.

Size 1 - Defines the first size of tubes depending on the direction [in % of the Matrix Size]. The default value is 10. Valid values range from 0.01 to 100.

Pitch 1 - Defines the first distance between tubes depending on the direction [in % of the Matrix Size]. The default value is 10. Valid values range from 0.01 to 100.

Size 2 - Defines the second size of tubes depending on the direction [in % of the Matrix Size]. The default value is 100. Valid values range from 0.01 to 100.

Pitch 2 - Defines the second distance between objects depending on the direction [in % of the Matrix Size]. The default value is 100. Valid values range from 0.01 to 100.

Alpha Mix - Defines the upper limit of how much alpha is added to each object [in %]. Alpha Mix will be visible when using additional Layers. The default value is 100. Valid values range from 0 to 100.

Sensitivity - Defines how quickly and accurately MADRIX 5 reacts to the audio input [in %]. The default value is 50. Valid values range from 0 to 100.



Shift - Shifts the position of equalizer bands [in %]. By default, lower frequencies are shown to the left and high frequencies are shown to the left. The default setting is 0. Valid values range from 0 to 100.

Amplification - Amplifies the audio input and as a result increases the visual intensity [in %]. The default setting is 0. Valid values range from 0 to 100.

Invert - Inverts the position of objects.

Mirror - Mirrors objects by creating duplicates on the opposite position.

Vertical Mode - Activates or deactivates the use of vertical objects. All 3 modes can be used at the same time.

Horizontal Mode - Activates or deactivates the use of horizontal objects. All 3 modes can be used at the same time.

Depth Mode - Activates or deactivates the use of objects in the depth. All 3 modes can be used at the same time.

Mode - Allows you to choose the mode in which way objects are generated [EQ, Level Mono, or Level Stereo]. The default setting is EQ.





Restoring The Default Settings

Restore Default Layer Settings - Restores the default settings of the Layer.
- All Layer Settings and Effect Settings will be restored to their default values.
- This does not include the MADRIX 5 Effect selection, the Effect Parameter Chaser [which will be paused], or the Layer Macro [which will be stopped].
