Introduction

SCE Swarm creates moving objects that react according to a swarm intelligence and thus imitate movement behavior.





Overview



Default Settings

Default Settings

Customized Example

Customized Example





Effect Options

This MADRIX Effects supports Effect Options for advanced workflows.

Learn more »Effect Options





Layer Settings

Various buttons and controls have universal functions. They are available for each MADRIX 5 Effect / Layer.
Learn more »Effect Areas [Deck A / Deck B]
Learn more »Layers

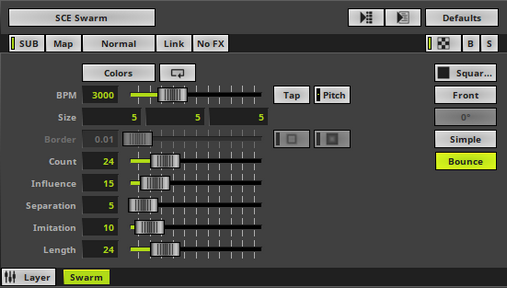

Effect Settings

This MADRIX 5 Effect uses the following, individual controls:

Colors - Opens the Color Table to specify the colors. The default color is White.
Learn more »[Global] Colors And Intensity

Size - Defines the size of objects [Width, Height, Depth]. The default values are 5, 5, 5. Valid values range from 0.1 to 100.

Border - Is only available for 2D outlined shapes or 3D unfilled shapes. Defines how thick the outer line [border] of objects is. The default value is 1. Valid values range from 0.01 to 100.

Count - Defines the number of objects. The default value is 24. Valid values range from 1 to 100.

Influence - Defines a radius in which objects influence other objects [in %]. The higher the value, the more visible the swarm behavior. The default value is 15. Valid values range from 0 to 100.

Separation - Defines how close objects can be to each other [in %]. The higher the value, the more space will be between objects. The default value is 5. Valid values range from 0 to 100.

Imitation - Defines how closely objects imitate the movement of other objects [in %]. The default value is 10. Valid values range from 0 to 100.

Length - Defines the length of objects and their tail [in %]. The default value is 30. Valid values range from 0 to 100.



Outer Glow / Inner Glow - Is only available for specific Shapes. Defines the outer shimmer or inner gleam of objects. The default settings are 0.00. Valid values range from 0.01 to 100.

Shape - Allows you to choose a specific shape for objects. A certain Size is required before a shape becomes visible. The default setting is Square Filled.

Shape Alignment - Allows you to choose to which side objects are aligned to. This is mainly relevant for 3D. The default setting is Front.

Shape Rotation Type - Is only available for specific Shapes. Defines the angle in which objects are rotated [, 90°, 180°, 270°, Random].

Rendering Mode - Defines how objects are rendered. Each mode may enable additional settings [such as additional Shapes]. Choose from 3 different modes. The default setting is Simple.
- Simple - Prioritizes processing speed over rendering possibilities.
- Extended - Prioritizes rendering possibilities over over processing speed. This mode may require more performance.
- Blobby - Prioritizes rendering possibilities over over processing speed and produces blobby objects. This mode may require more performance.

Bounce - When activated, objects will bounce of the boundaries of the virtual LED matrix. Deactivate it and objects will appear on the opposite side when crossing a boundary. It is activated by default.





Restoring The Default Settings

Restore Default Layer Settings - Restores the default settings of the Layer.
- All Layer Settings and Effect Settings will be restored to their default values.
- This does not include the MADRIX 5 Effect selection, the Effect Parameter Chaser [which will be paused], or the Layer Macro [which will be stopped].



MADRIX 5.7.
