This topic includes:
▪Introduction
▪Overview
▪Effect Options
▪Layer Settings
▪Effect Settings
▪Restoring The Default Settings
Introduction
SCE Explosions displays all kinds of explosions as well as fireworks.
Overview

|
|
 Default Settings
|
 Customized Example
|
Effect Options
▪This MADRIX Effects supports Effect Options for advanced workflows.
Learn more »Effect Options
Layer Settings
▪Various buttons and controls have universal functions. They are available for each MADRIX Effect / Layer.
Learn more »Effect Areas [Deck A / Deck B]
Learn more »Layers
Effect Settings

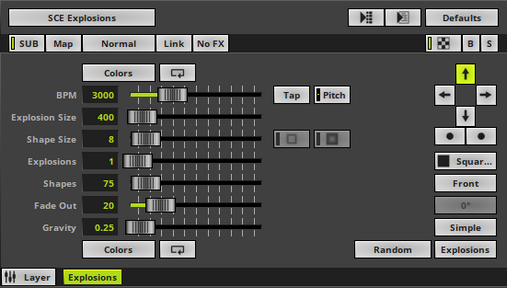

This MADRIX Effect uses the following, individual controls:
▪Colors - Opens the Color Table. The default colors are Red, Yellow, Green, Cyan, Blue, Magenta.
Learn more »[Global] Colors And Intensity
▪BPM - Defines the speed. The default value is 3000. Valid values range from 0 to 9999.
Learn more »Using BPM Control
▪Explosion Size - Defines the magnitude of each explosion. The default value is 400. Valid values range from 1 to 9999.
▪Shape Size - Defines the size of each object within an explosion. The default value is 8. Valid values range from 1 to 100.
▪Explosions - Defines how many explosions are displayed at the same time. The default value is 1. Valid values range from 1 to 100.
▪Shapes - Defines the number of single objects a single explosion includes. The default value is 75. Valid values range from 1 to 1000.
▪Fade Out - Defines how fast MADRIX 5 displays objects. The default value is 20. Valid values range from 0 to 1000.
▪Gravity - Defines how strong objects are pulled to the bottom depending on the direction [in %]. The default value is 0.25. Valid values range from 0 to 100.
▪Colors - Opens a second Color Table to define the second colors of each explosion. The default color is White.
Learn more »[Global] Colors And Intensity

|
Outer Glow / Inner Glow - Is only available for specific Shapes. Defines the outer shimmer or inner gleam of objects. The default settings are 0.00. Valid values range from 0.01 to 100.
|

|
Explosion Shape - Allows you to choose a specific shape for explosions [Sphere, Sphere Glow, Spiral, Radial, Diamond, Star, Random]. The default setting is Random.
|

|
Direction - Allows you to choose the direction of the movement. The default setting is Up. Learn more »Using Directions
|

|
Direction - Allows you to choose the direction of the movement [To The Front or To The Back]. This is mainly relevant for 3D. The default setting is Up. Learn more »Using Directions
|

|
Shape - Allows you to choose a specific shape for objects. A certain Size is required before a shape becomes visible. The default setting is Square Filled.
|

|
Look-At Type - Allows you to choose from which side you want to look at the effect. This is mainly relevant for 3D. The default setting is Front. Learn more »Using Directions
|

|
Shape Rotation Type - Is only available for specific Shapes. Defines the angle in which objects are rotated [0°, 90°, 180°, 270°, Random].
|

|
Rendering Mode - Defines how objects are rendered. Each mode may enable additional settings [such as additional Shapes]. Choose from 2 different modes. The default setting is Simple.
- Simple - Prioritizes processing speed over rendering possibilities.
- Extended - Prioritizes rendering possibilities over over processing speed. This mode may require more performance.
|

|
Mode - Allows you to choose the mode [Explosions or Fireworks]. The default setting is Explosions.
|
Restoring The Default Settings

|
Restore Default Layer Settings - Restores the default settings of the Layer.
- All Layer Settings and Effect Settings will be restored to their default values.
- This does not include the MADRIX Effect selection, the Effect Parameter Chaser [which will be paused], or the Layer Macro [which will be stopped].
|
|
