Introduction

S2L Frequency Flash analyzes the audio input for certain frequencies and flashes the LED matrix when such frequencies occur in the audio input.





Overview

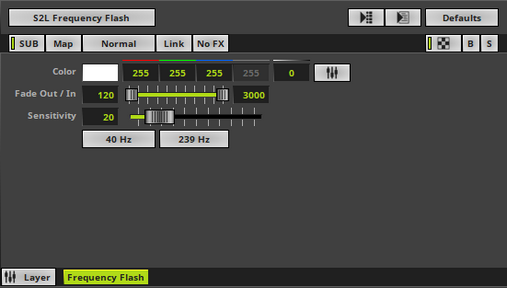

Default Settings

Default Settings
Customized Example

Customized Example





Effect Options

▪This MADRIX Effects supports Effect Options for advanced workflows.

Learn more »Effect Options





Layer Settings

▪Various buttons and controls have universal functions. They are available for each MADRIX 5 Effect / Layer.
Learn more »Effect Areas [Deck A / Deck B]
Learn more »Layers





Effect Settings

This MADRIX 5 Effect uses the following, individual controls:

▪Color - Defines the color. The default color is White.
Learn more »[Global] Colors And Intensity

▪Fade Out / In - Defines how fast MADRIX 5 flashes. You can specify the fade-in speed as well as the fade-out speed. This value represents Beats Per Minute [BPM]. The default values are 120 and 3000. Valid values range from 1 to 3000.

▪Threshold - Defines a minimum level of the frequency that must occur before the effect is triggered [in %]. The default value is 80. Valid values range from 1 to 100.

▪Frequency - Defines the frequency at which the effect is triggered [in Hz]. The default value is 96. Valid values range from 5 to 13007.

▪Bandwidth - Defines the lower and upper limits of the analyzed frequency spectrum with Frequency at the center of the curve [in %]. The default value is 22. Valid values range from 1 to 100.



▪Shows the current settings as a graph. Can also be edited via the mouse.

- Threshold is represented by the height of the graph.
- Frequency is represented by the peak position of the graph. [The position is scaled logarithmically due to the logarithmic nature of human hearing.]
- Bandwidth is represented by the width of the curve.



▪Left Mouse Click And Hold + Drag - Allows you to directly change the Frequency and Threshold.

▪Shift + Left Mouse Click And Hold On Green Graph + Drag - Allows you to directly change the Threshold.

▪Shift + Left Mouse Click And Hold On Black Background + Drag - Allows you to directly change the Frequency.

▪Mouse Wheel - Allows you to directly change the Bandwidth.

▪Right Mouse Click - Reset to default settings.





Restoring The Default Settings

Restore Default Layer Settings - Restores the default settings of the Layer.
- All Layer Settings and Effect Settings will be restored to their default values.
- This does not include the MADRIX 5 Effect selection, the Effect Parameter Chaser [which will be paused], or the Layer Macro [which will be stopped].



MADRIX 5.6.
