M2L Tubes

This topic includes:

▪Introduction

▪Overview

▪Effect Options

▪Layer Settings

▪Effect Settings

▪Restoring The Default Settings

Introduction

M2L Tubes displays the music in form of tubes.

Overview

		Default Settings
		Customized Example

Effect Options

▪This MADRIX Effects supports Effect Options for advanced workflows.

Learn more »Effect Options

Layer Settings

▪Various buttons and controls have universal functions. They are available for each MADRIX 5 Effect / Layer.
Learn more »Effect Areas [Deck A / Deck B]
Learn more »Layers

Effect Settings

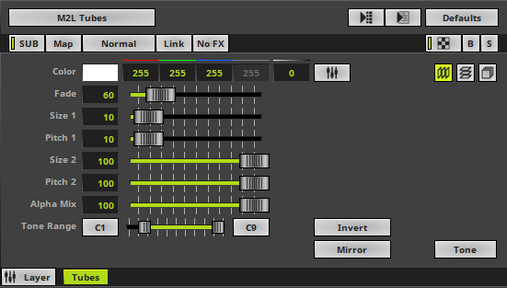

This MADRIX 5 Effect uses the following, individual controls:

▪Color - Defines the color. The default color is White.
Learn more »[Global] Colors And Intensity

▪Fade - Defines how fast MADRIX 5 displays the effect [in %]. The default value is 60. Valid values range from 1 to 3000.

▪Size 1 - Defines the first size of tubes depending on the direction [in %]. The default value is 10. Valid values range from 0.01 to 100.

▪Pitch 1 - Defines the first distance between tubes depending on the direction [in %]. The default value is 10. Valid values range from 0.01 to 100.

▪Size 2 - Defines the second size of tubes depending on the direction [in %]. The default value is 100. Valid values range from 0.01 to 100.

▪Pitch 2 - Defines the first distance between objects depending on the direction [in %]. The default value is 100. Valid values range from 0.01 to 100.

▪Alpha Mix - Defines the upper limit of how much alpha is added to each object [in %] . Alpha Mix will be visible when using additional Layers. The default value is 100. Valid values range from 0 to 100.

▪Tone Range - Defines the range of tones analyzed and used by setting a minimum and a maximum value. Narrow the range if your audio signal does not include a wide range of tones to avoid a lot of empty space where no objects are shown. The default values are C1 and C9. Valid values range from C-1 to G9.

Restoring The Default Settings
