Control - Live Control

  Previous  Next



Overview

The Control section allows you to directly control the status of the device.

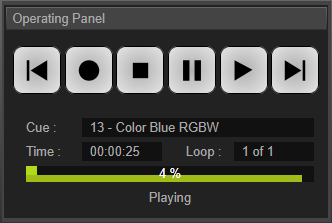

Operating Panel

Sync. Type

The panel shows if the device has been set as a Master or Slave device.

Control Buttons

These include Skip To Previous Cue, Record, Stop, Pause, Play, and Skip To Next Cue.

Attention:

Make sure to send control data to the device before you start a recording process [Art-Net or Streaming ACN]!

You will see a status message, when the inserted memory card is not ready for recording [No SD Card, SD Card Full, SD Card Protected].

Make sure that MADRIX AURA is the only sender in the network when playing back scenes.
[You will run into issues if the original sender from which the device recorded its data from is still sending to the same universes.]

Based on the FAT32 file system, files on the SD card can only have a maximum file size of 4 GB. Should a recording process create such large files, MADRIX AURA automatically creates new files and continues recording, and adds a second index number to the file names in addition to the original index.

Recorded data that is saved on the SD card will be encrypted first.

Cue :

Shows the index number and name of the current cue.

Time :

Shows the duration of the cue in HH:MM:SS [Hours:Minutes:Seconds].

Loop :

Shows the current loop number [as you can set cues to repeat and play several times in the Cue List Editor].

XY % / 00:00:00

Shows the current position of playback [in %] or recording [in HH:MM:SS]. A green visual indicator acts as a progress bar.

Playing - Indicates that a cue list is being played back.

Paused - Indicates that playback has been halted.

Stopped - Indicates that playback has been stopped.

Fading - Indicates that the scene includes a fade-in time as set in the Cue List Editor.

Starting - Indicates that the playback starts soon.

Recording - Indicates that a recording process is currently active.

Recording (Awaiting Data) - Indicates that a recording process has been started, but that the device is currently not receiving any incoming data it could record.





Output Panel

Use a left mouse double-click to reset to the default value.

Intensity

Sets the main brightness of the output.
Valid values range from 0 to 255 [in the DMX range] or from 0 % to 100 % [in percent] depending on your device settings. The default value is 255.

Speed

Sets the general playback speed of the device.
[This speed is multiplied by the speed of a Cue in the Cue List; for a total maximum speed of 400 %.]
Valid values range from 1 % to 200 %. The default value is 100 %.





Intensity Group Panel

Intensity Groups refer to the Channel Mask. Learn more »Channel Mask

Use a left mouse double-click to reset to the default value.

Faders

Allow you to control the intensity of Intensity Group 1 to 8 with the help of the mouse.
Valid values range from 0 to 255 [in the DMX range] or from 0 % to 100 % [in percent] depending on your device settings. The default value is 255.

Input Fields

Allow you to control the intensity of Intensity Group 1 to 8 with the help of direct value input via the keyboard or up and down buttons.
Valid values range from 0 to 255 [in the DMX range] or from 0 % to 100 % [in percent] depending on your settings. The default value is 255.
