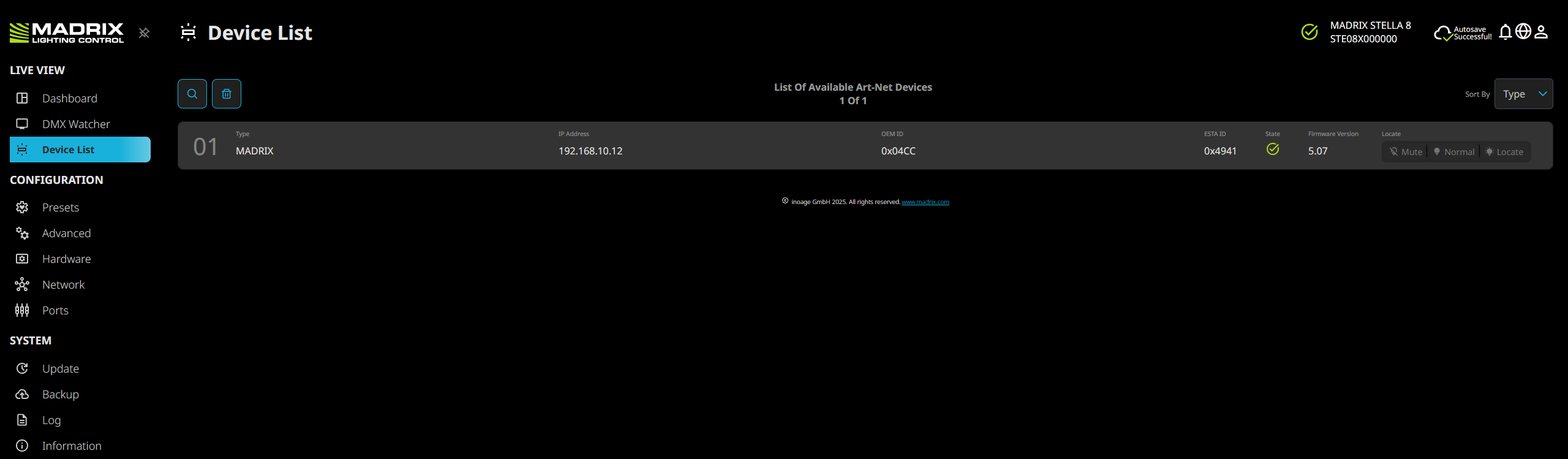

Search - Searches for Art-Net devices in the network. [Please allow a few seconds for devices to appear in the list.]

Remove - Removes all Art-Net devices from the list.

2 Of 2
[X Available Of Y Found]

Shows the number of Art-Net devices that are available and the number that has been found.

Sort By

Allows you to sort the list alphabetically by Type, IP Address, State, or Firmware Version.

#

An index number of the Art-Net devices is provided for easier referencing.

Type

Shows if the device could be identified further:

▪Art-Net [For any generic Art-Net device that is not MADRIX software or a MADRIX hardware controller.]


▪MADRIX [For MADRIX 5 Software.]

▪MadrixTimeCodeSender [For MADRIX 5 Time Code Sender Software.]


▪PLEXUS [For MADRIX PLEXUS devices.]

▪LUNA 4 [For MADRIX LUNA 4 devices.]

▪LUNA 8 [For MADRIX LUNA 8 devices.]

▪LUNA 16 [For MADRIX LUNA 16 devices.]

▪NEBULA [For MADRIX NEBULA devices.]

▪STELLA [For MADRIX STELLA devices.]

▪ORION [For MADRIX LUNA 8 devices.]

▪RADAR [For MADRIX RADAR Software.]

▪AURA [For MADRIX AURA devices.]

▪STELLA 8 [For other MADRIX STELLA 8 devices.]

IP Address

Shows the IP address of the Art-Net device.

If shown underlined in blue, it can be used as a click-able link to call up the Art-Net device with this IP address in the web browser.

OEM ID

Shows the OEM ID the Art-Net device has reported.

ESTA ID

Shows the ESTA ID the Art-Net device has reported.

State

Shows the status of the Art-Net device.

▪Timeout [The connection to this device has timed out.]

▪Available [The connection to the device is active.]

Firmware Version

Shows the firmware version of the Art-Net device, if available.

Locate

Mute

Normal

Locate

Allows you to use the ArtAddress commands:

▪Mute Status Indicators - Switches off and disables all built-in status indicators of a device over Art-Net [ArtAddress > AcLedMute].

▪Operate Status Indicators Normally - Allows the built-in status indicators of a device to operate normally again, after having them switched off [ArtAddress > AcLedNormal].

▪Locate Device - Activates the highlight mode [ArtAddress > AcLedLocate]. The corresponding status indicators of the selected interfaces will flash for a better identification or tests.
This makes it easier to see the device on site/stage. It considerably speeds up the procedure of programming or testing the selected interfaces.
