Introduction

The MADRIX 5 Backup System is a type of network communication between two or more computers in order to set up a backup solution.

A backup solution should get involved as soon as possible after the main control solution fails.

Regarding the MADRIX 5 Backup System, so-called keep-alive messages are sent by one MADRIX computer to other computers to check if the connection between the computers is working properly.

If the Master fails, i.e. if the Master does not send keep-alive messages in a certain time interval [in seconds], the Slave is automatically activated and sends the output data to the LEDs.

Similarly, the Slave is sending keep-alive messages.

The MADRIX 5 Backup System works in combination with a Cue List in order to synchronize Master and Slave for backup purposes.





Advanced Details

A Master is being defined by selecting it on a Slave system.
- This mechanism ensures that it can be checked if the Master is available to the Slave.

Multiple Masters and Slaves can be defined.
- This also results in the following:


Multiple, independent MADRIX 5 backup systems can be set up within a single network.

A Master with a larger MADRIX 5 License [such as, 1x MADRIX 5 entry] can be backed up by several Slaves with smaller software licenses [such as, 4x MADRIX 5 start].

A Slave can be a Master to another Slave, which means that Slaves that back up a Master, can be backed up by different Slaves in turn.





Overview

Go to the menu Preferences > Backup System...

A new window will open.

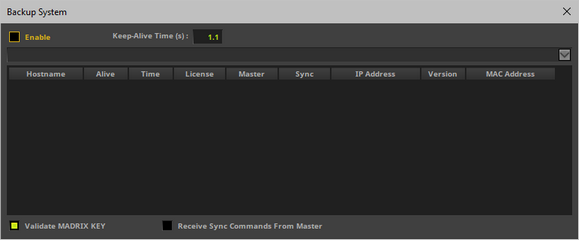

Backup System Window





Step-By-Step Instructions

1] Make sure that all requirements are met.

2] Set up both computers and the network.

3] Configure the Master.

4] Configure the Slave.

5] Configure the MADRIX 5 Setup and Cue List.

6] Learn about additional hints and

7] Test if all systems are working correctly.



1] Requirements

Make sure that all computers are equipped with a MADRIX KEY [i.e. a MADRIX 5 Software License].

Make sure that all computers are using the same MADRIX 5 Software version.



2] Setup

Set up both computers and the network according to the instructions below:

How To Connect Master And Slave

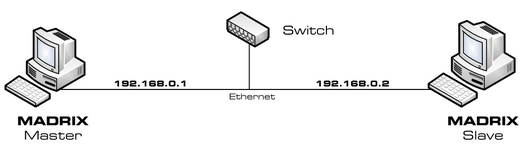

Master and Slave Illustration



You can utilize your network card with an Ethernet port to connect two ore more computers using a network switch.

Set up the IP addresses from the computers like in the picture above.

Both computers have to be in the same network address area [e.g., 192.168.0.1 to 192.168.0.254].



Example 1: How To Use The Backup System And Art-Net

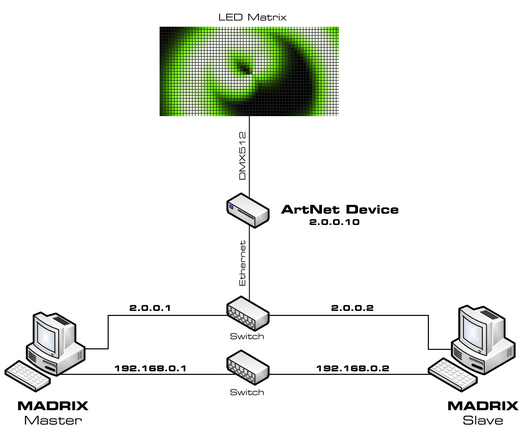

Art-Net Backup System Illustration



It is recommended to always use two separate networks with two network cards if you want to sync Master and Slave and use Art-Net at the same time.

Minimum requirements for this setup are:
- 2 computers
- 2 Ethernet switches
- 1 or more Art-Net devices
- Ethernet cables
- DMX cables.

Apart from that, both computers need to have two network cards installed. The setup for the first network is 192.168.0.X, for example, and the second is 2.0.0.X, for example.
- The former will be used as the backup system, the latter is transferring Art-Net data.



Example 2: How To Use The Backup System And Art-Net [Low-Budget Alternative]

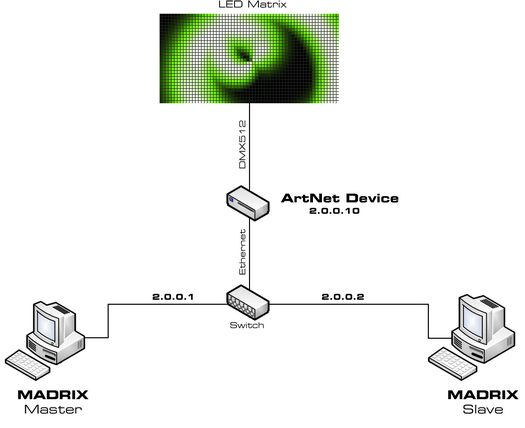

Backup System and Art-Net (Small)



In addition, you may use a variation of the example above.

Depending on your installation, it can be possible to do the setup without the second network. It is a smaller budget alternative and in this case only the Art-Net network will be used.

At the same time this means that traffic from both Art-Net and the backup system will be transferred over this single network. In larger installations this might cause network problems due to high data traffic!

Connecting this backup system to the internet is not recommended because problems with the internet connection are likely to occur [such as connection errors, dropouts, etc.]. WiFi-nodes are also not recommended. The Art-Net data will simply interfere with the internet data in the 2.0.0.X network.

If your Art-Net interfaces support the 10.0.0.X network, you may establish an internet connection since the Art-Net data may be blocked by your router and does not interfere with the internet connection.


Such an installation is at your own risk.



Example 3: How To Use The Backup System And USB DMX512 Interfaces

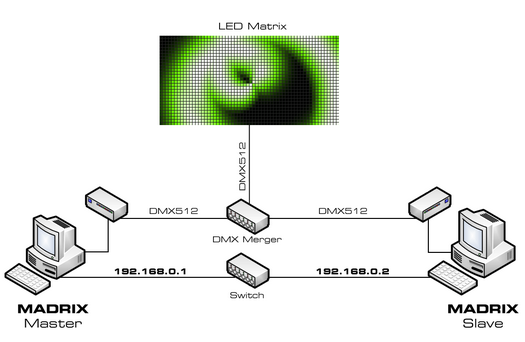

Backup System with USB DMX512 Interfaces



If you are going to use an USB DMX512 interface, you can work with one network card to sync Master and Slave.

Minimum requirements for this set-up are:
- 2 computers
- 1 Ethernet switch
- 1 DMX merger
- 2 DMX512 devices
- Ethernet cables
- DMX cables

Apart from that, both computers need to have a network card installed. The set-up for this network is 192.168.0.X, for example. Only this card/network will be used for the backup system.



3] Configuration Of The Master

Configure the Master using the following options and settings:

Enable - Activates the backup system.

Keep-Alive Time (s) - Defines the time range between keep-alive messages [in seconds]. Valid values range from 0.1 to 25.6. The default and recommended value is 1.1.
[If the network connection is working correctly, you will see Yes in the column Alive. If the connection is lost, you will see Timeout.]

Drop-Down List - Allows you to choose the correct network card if your computer or laptop is equipped with more than one network card.





(Local) - Specifies that this is your local computer on which you are currently working.

- Allows you to manually remove outdated list entries.



4] Configuration Of The Slave

Configure the Slave using the following options and settings:

Enable - Activates the backup system.

Keep-Alive Time (s) - Defines the time range between keep-alive messages [in seconds]. Valid values range from 0.1 to 25.6. The default and recommended value is 1.1.
[If the network connection is working correctly, you will see Yes in the column Alive. If the connection is lost, you will see Timeout.]

Drop-Down List - Allows you to choose the correct network card if your computer or laptop is equipped with more than one network card.





(Local) - Specifies that this is your local computer on which you are currently working.

Validate MADRIX KEY - MADRIX 5 automatically monitors if the MADRIX KEY is is plugged into the Master.

- Allows you to manually remove outdated list entries.


Please activate:

Receive Sync Commands From Master - Activates that the computer receives synchronization signals from the Master.



Now, select the Master in the list and click:

Change Master - Allows you to select another computer in the list of found network computer and set this computer as the Master. You are not allowed to select your local computer as Master. You will have to choose a remote computer.

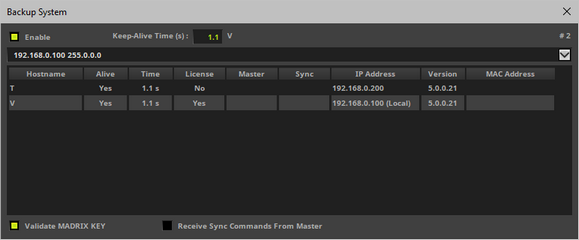

The Master will be activated as Master in the Backup System of the Slave:

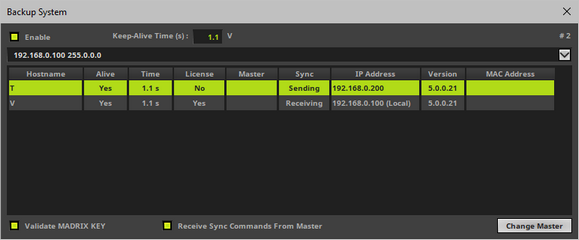

The Slave will be activated as Slave in the Backup System of the Master:





Result:

If the Backup System is activated, the Slave will not output any data as long as the Master is properly connected and alive in the network.

If the Master is disconnected and receives a timeout, the Slave will start sending data when it receives the timeout message.



5] Setup And Cue List

Finally, make sure that Master and Slave have the correct configuration of devices, patch, and effects. Ideally, you can load the same MADRIX 5 Setup on both computers.

Make sure that all computers are using the same Cue List.
[As a minimum requirement, the number of Cues needs to be identical.]



6] Additional Information

You can set up if the MADRIX 5 Software automatically tries to restart after any unexpected software shutdown or failure.
- If enabled that could mean that your Master comes back up after a crash while the Slave already overtook, for example.
- To disable or enable the behavior, go to the menu Preferences > Options... > Startup > Enable Application Restart Manager

Due to this behavior, it might be advisable to further set up the MADRIX 5 Startup Options.
- For example, go to the menu Preferences > Options... > Startup > Open This Setup and choose the correct MADRIX 5 Setup file via the button ...
- Enable this option on both, Master and Slave, and choose the same Setup file in both cases.
- This ensures that a Master which came back also already and automatically loads the correct Setup file.

Check if any other Startup options may be relevant for your use case.

Please note further that a Slave does not sync back its position when it overtook.
- That could mean that your Master starts at a different cue than what your Slave was already using.
- Using Time Code can soften this issue, but it may not be able to avoid it entirely.



7] Tests

Perform the following tests in order to ensure that all systems are working correctly:

Test if the Master is controlling the LED installation correctly.

Test if the Slave is controlling the LED installation correctly.

Test if the Backup System is working correctly, if a Cue List is being synchronized between Master and Slave, and especially if the Slave is sending data in case the Master is disconnected and receives a timeout.
