2D Patch With The Matrix Generator For DVI Output

   Print  Previous  Next

In this tutorial we will create an easy 2D patch with the help of the Matrix Generator for DVI output.



Date: 10/2018
MADRIX Version: 5.0 (Created with)

Corresponding Video Tutorial: »Creating A 2D Patch For DVI Output With The Matrix Generator



Task:

We have to create a patch for a DVI output. The resolution of the screen is 160 pixels in X and 90 pixels in Y.



1.

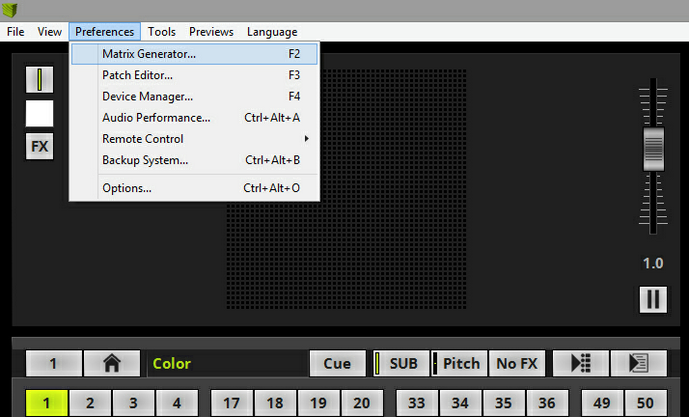

In MADRIX please go to Preferences > Matrix Generator .
[Keyboard shortcut F2]



2.

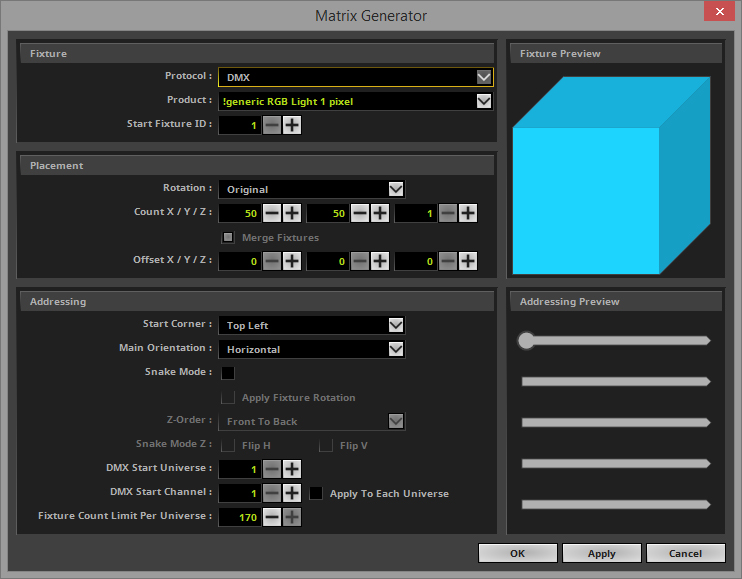

The Matrix Generator opens with the default settings.
The full explanation about all functions of the Matrix Generator you will find in the MADRIX 5 manual chapter: »Using The Software > Patching > Matrix Generator



3.

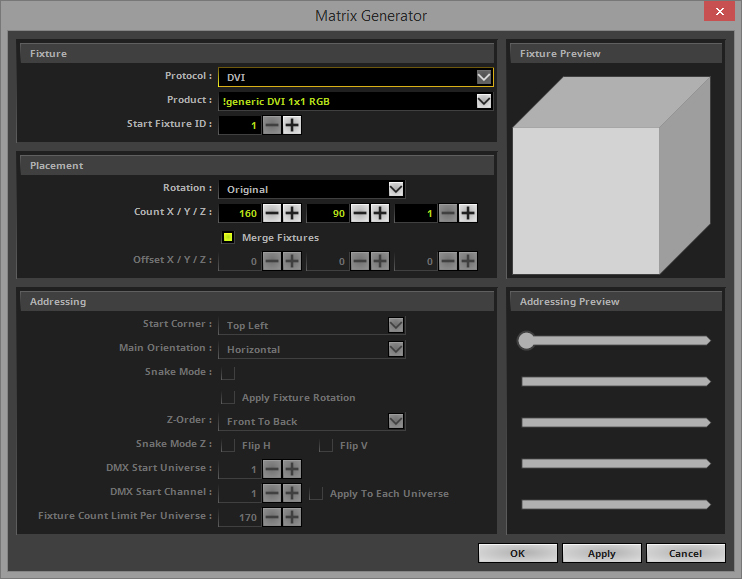

Now we have to change the settings according to our task, to patch a DVI resolution of 160 x 90 pixels.

The Protocol must be changed to DVI.

In this example we create a patch with the Product: !generic RGB Light 1 pixel

The Count X will be set to 160, the Count Y will be set to 90 and the Count Z we don't change and leave it at 1

After we change this setting we click OK
[Keyboard shortcut Enter]





4.

After the Matrix Generator was closed MADRIX creates the new matrix of 160 x 90 pixels immediately.





Congratulations! You have successfully learned how to create a 2D patch for DVI output with the help of the Matrix Generator.
